MAX9744
20W Stereo Class D Speaker Amplifier with Volume Control
Show More
Delivers 2 x 20W from 12V Supply into 4Ω Loads
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Wide 4.5V to 14V Power-Supply Voltage Range
- Filterless Spread-Spectrum Modulation Lowers Radiated RF Emissions from Speaker Cables
- 20W Stereo Output (4Ω, VDD = 12V, THD+N = 10%)
- Integrated Volume Control (I²C or Analog)
- Low 0.04% THD+N
- High 75dB PSRR
- High 93% Efficiency
- Integrated Click-and-Pop Suppression
- Low-Power Shutdown Mode
- Short-Circuit and Thermal-Overload Protection
- Available in a 44-Pin Thin QFN-EP (7mm x 7mm x 0.8mm)
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

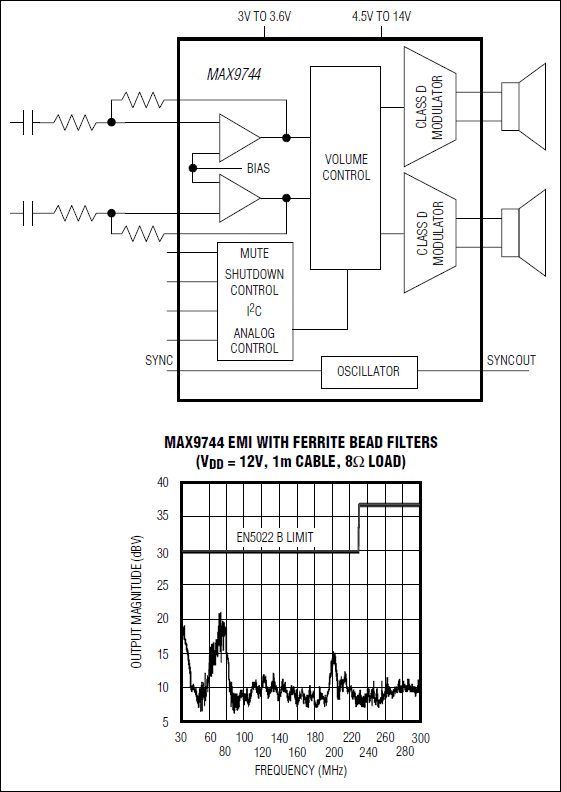

The MAX9744 20W stereo Class D audio power amplifier provides Class AB amplifier performance with Class D efficiency, conserving board space and eliminating the need for a bulky heatsink. This device features single-supply operation, adjustable gain, shutdown mode, a SYNC output, speaker mute, and industry-leading click-and-pop suppression.
The MAX9744 features a 64-step dual-mode (analog or digital), programmable volume control and mute function. The MAX9744 operates from a 4.5V to 14V single supply and can deliver up to 20W per channel into a 4Ω speaker with a 14V supply.
The MAX9744 offers two modulation schemes: a fixed-frequency modulation mode that allows one of several preset switching frequencies to be selected, and a spread-spectrum modulation mode that helps to reduce EMI-radiated emissions.
The MAX9744 features high 75dB PSRR, low 0.04% THD+N, and SNR in excess of 90dB. Robust short-circuit and thermal-overload protection prevent device damage during a fault condition. The MAX9744 is available in a 44-pin thin QFN-EP (7mm x 7mm x 0.8mm) package and is specified over the extended -40°C to +85°C temperature range.
Applications
- Flat-Panel Televisions
- Multimedia Docking Stations
- PC Speaker Systems
