Features and Benefits
- 1300mA Peak Output Current
- Rail-to-Rail Inputs and Outputs
- Operates Up to 20V
- 40V/µs Slew Rate
- 35MHz Bandwidth
- 5mA Quiescent Current per Channel
- Excellent Heat Dissipation (Exposed Pad)
The MAX9650/MAX9651 are single- and dual-channel VCOM amplifiers with rail-to-rail inputs and outputs. The MAX9650/MAX9651 can drive up to 1300mA of peak current per channel and operate up to 20V.

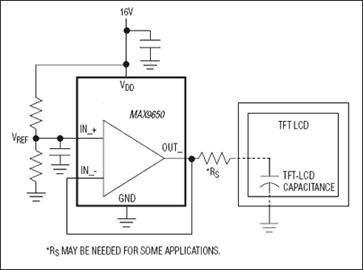

The MAX9650/MAX9651 are designed to source and sink a high current quickly to hold the VCOM voltage stable in large TFT-LCD panels.
The MAX9650/MAX9651 feature 40V/µs slew rate and 35MHz bandwidth to quickly settle outputs for 120Hz frame rate and full HD television.
The MAX9650/MAX9651 feature output short-circuit protection and thermal shutdown. These devices are available in exposed pad packages for excellent heat dissipation.
- Displays: LCD
- Flat-Panel and Plasma TVs
- Instrument Control Voltage Sources
- TFT-LCD Display Panels
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
MAX9651 Reliability Data1/12/202345K
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|MAX9651ATA+||Material Declaration||Reliability Data||Thin Dual Flatpack No Leads, Exposed Pad|
|MAX9651ATA+T||Material Declaration||Reliability Data||Thin Dual Flatpack No Leads, Exposed Pad|
|MAX9651AUA+||Material Declaration||Reliability Data||Micro-MAX, Thin Shrink Small-Outline, Exposed Pad|
|MAX9651AUA+T||Material Declaration||Reliability Data||Micro-MAX, Thin Shrink Small-Outline, Exposed Pad|
|Wafer Fabrication Data||MAX9651 Reliability Data|
