MAX9626
Low-Noise, Low-Distortion, 1.35GHz Fully Differential Amplifiers
Ultra-Low Distortion, Fast-Settling Differential-Output Amplifiers in a Small 3mm x 3mm Package
Top
Overview
Features and Benefits
- Low-Voltage Noise Density 3.6nV/
- Low Harmonic Distortion
- HD2/HD3 of -102/-105dB at 10MHz
- HD2/HD3 of -86/-80dB at 125MHz
- Factory Set Gain Options of 1V/V, 2V/V, and 4V/V
- 1.35GHz Small-Signal Bandwidth
- Adjustable-Output Common-Mode Voltage
- Differential-to-Differential or Single-Ended-to-Differential Operation
- 25µA Shutdown Current
- Single-Supply Voltage +2.85V to +5.25V

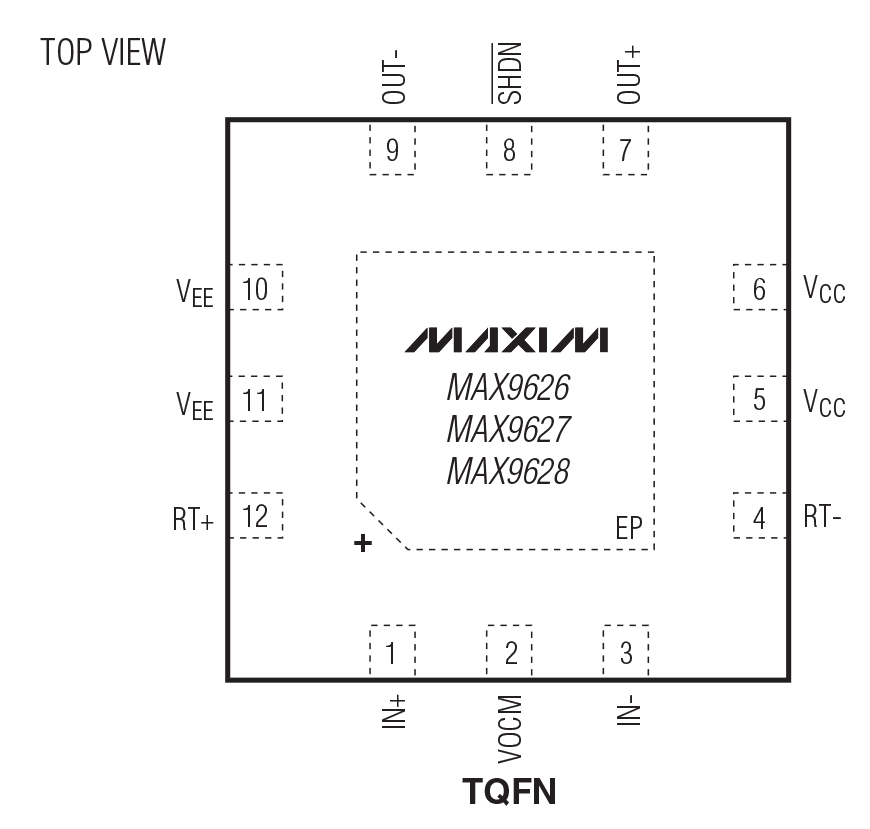

- Small, 3mm x 3mm 12-Pin TQFN Package
Product Details

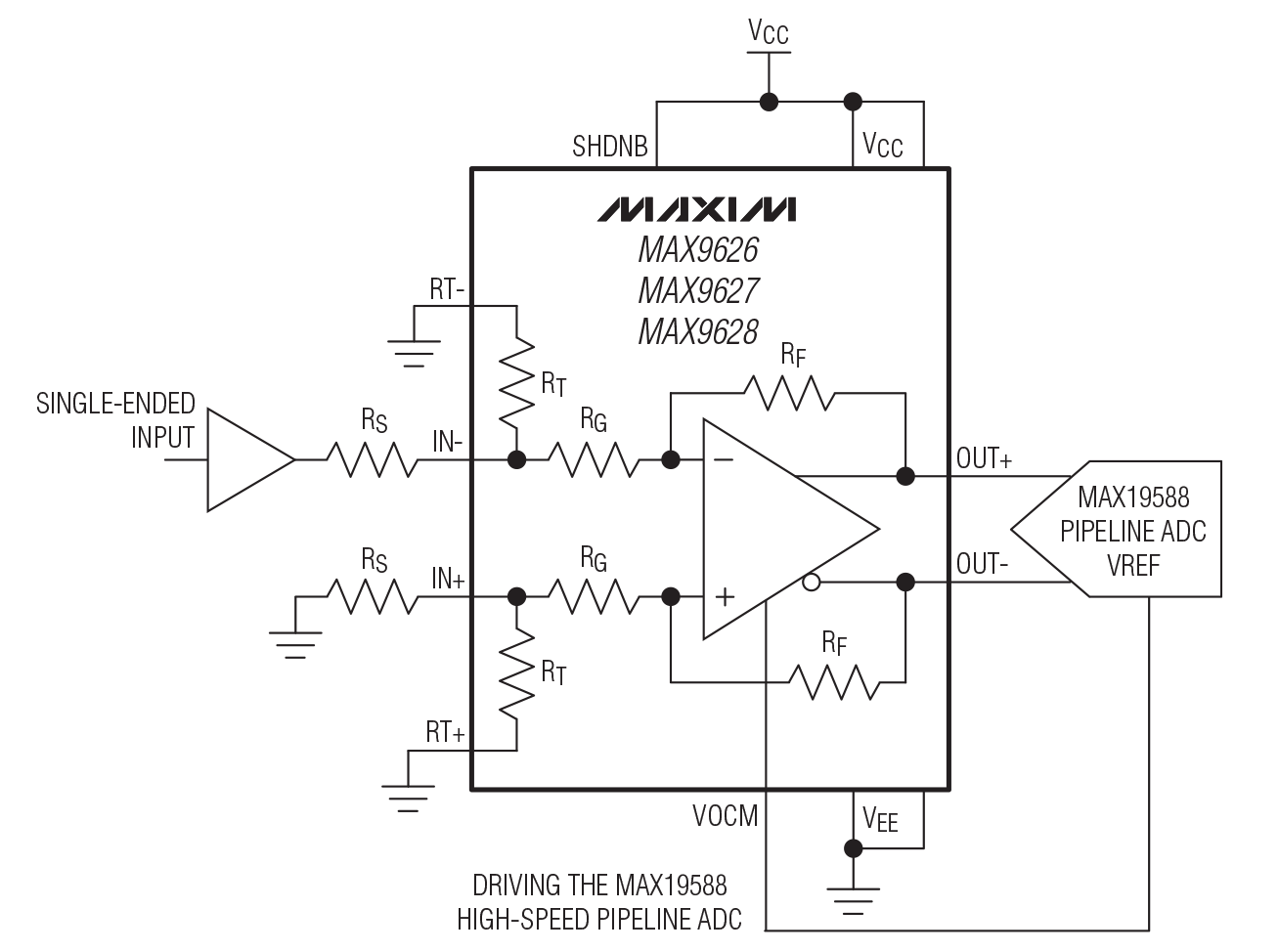

The MAX9626/MAX9627/MAX9628 are low-noise, low-distortion, and high-bandwidth differential amplifier/ADC drivers for use in applications from DC to 1.35GHz. The exceptional low input-referred noise and low distortion make these parts an excellent solution to drive high-speed 12-bit to 16-bit pipeline ADCs. The output common mode is set through the VOCM input pin, thus eliminating the need for a coupling transformer or AC-coupling capacitors. The ICs feature shutdown mode for power savings and are offered in a 12-pin, 3mm x 3mm TQFN package for operation over the -40°C to +125°C temperature range.
Applications
- ATE
- Communication
- High-Performance Instrumentation
- Medical Imaging
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
SPICE Model
LIB
MAX9626 SPICE Macro Model
1.75K
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| MAX9626ATC+ | Material Declaration | Reliability Data | 12-LFCSP-3X3X0.75 | |
| MAX9626ATC+T | Material Declaration | Reliability Data | 12-LFCSP-3X3X0.75 | |
| Wafer Fabrication Data |
