Overview

Features and Benefits

  • VCC = 2.5V to 5.5V (-40°C to +125°C)
  • Low 100μV (max) VOS
  • 1µA Supply Current in Shutdown, 175µA Operating
  • Small SC70 Package
  • 2.8MHz Bandwidth
  • Excellent RF Immunity

Product Details

The MAX9614/MAX9616 are low-power precision op amps that feature precision MOS inputs.

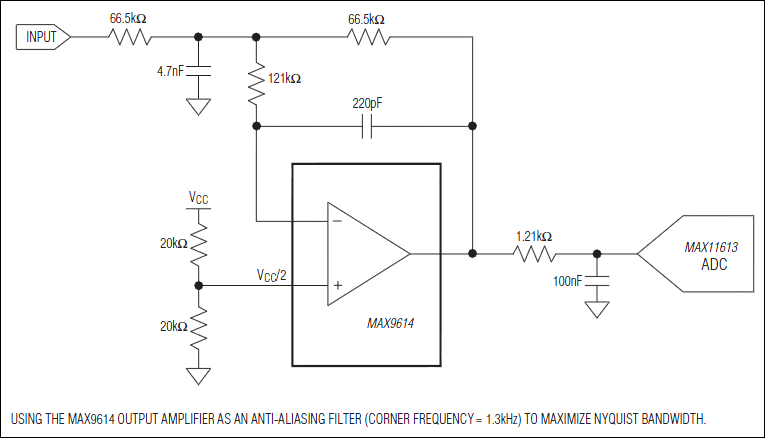

These devices are ideal for a large number of signal processing applications such as photodiode transimpedance amplifiers and filtering/amplification of a wide variety of signals in industrial equipment. The devices also feature excellent RF immunity, making them ideal for portable applications.

The MAX9614/MAX9616 are capable of operating from a 2.5V to 5.5V supply voltage over the -40°C to +125°C automotive temperature range.

Both singles and duals are available in tiny SC70 packages. The MAX9614 features an active-low shutdown pin.

Applications

  • General Purpose Signal Processing
  • Industrial and Medical Sensors
  • Notebooks, Portable Media Players
