MAX9615
Low-Power, High-Efficiency, Single/Dual, Rail-to-Rail I/O Op Amps
Save Maintenance System Downtime and Self-Calibration Feature Ensures System Accuracy Over Time and Temperature
Top
Overview
Features and Benefits
- VCC = 1.7V to 5.5V (0°C to +70°C)
- VCC = 1.8V to 5.5V (-40°C to +125°C)
- Low 100µV (max) VOS
- Rail-to-Rail Inputs and Outputs
- Low 210µA Supply Current, 1µA in Shutdown
- Autotrim Offset Calibration
- 2.8MHz Bandwidth
- Excellent RF Immunity
Product Details
The MAX9613/MAX9615 are low-power precision op amps with rail-to-rail inputs and rail-to-rail outputs. They feature precision MOS inputs powered from an internal charge pump to eliminate crossover distortion that is common to complementary input-pair type amplifier architectures.

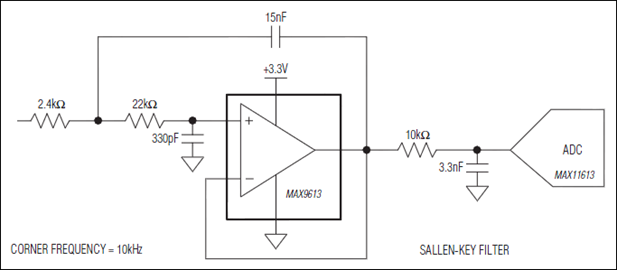

These devices are ideal for a large number of signal processing applications such as photodiode transimpedance amplifiers and filtering/amplification of a wide variety of signals in industrial equipment. The devices also feature excellent RF immunity, making them ideal for portable applications.
The MAX9613/MAX9615 feature a self-calibration system (on power-up), eliminating the effects of temperature and power-supply variations.
The MAX9613/MAX9615 are capable of operating from a 1.7V to 5.5V supply voltage over the 0°C to +70°C temperature range, and from 1.8V to 5.5V over the -40°C to +125°C automotive temperature range.
Both singles and duals are available in tiny SC70 packages. The MAX9613 features a high-impedance output while in shutdown.
Applications
- General Purpose Signal Processing
- Industrial and Medical Sensors
- Notebooks, Portable Media Players
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
