MAX9316A

1:5 Differential (LV)PECL/(LV)ECL/HSTL Clock and Data Driver

1:5 Differential (LV)PECL/(LV)ECL/HSTL Clock and Data Driver Designed for Clock and Data Distribution

Data Sheet (Rev. 0)
Viewing:

Overview

  • Guaranteed 400mV Differential Output at 1.5GHz
  • Selectable Single-Ended or Differential Input
  • 130ps (max) Part-to-Part Skew at +25°C
  • 20ps Output-to-Output Skew
  • 365ps Propagation Delay
  • Synchronous Output Enable/Disable
  • On-Chip Reference for Single-Ended Inputs
  • Input Biased to Low when Open
  • Pin Compatible with MC100EL14

The MAX9316A is a low-skew, 1-to-5 differential driver designed for clock and data distribution. This device allows selection between two inputs: one differential and one single ended. The selected input is reproduced at five differential outputs. The differential input can be adapted to accept a single-ended input by connecting the on-chip VBB supply to one input as a reference voltage.

The MAX9316A features low output-to-output skew (20ps), making it ideal for clock and data distribution across a backplane or board. For interfacing to differential HSTL and (LV)PECL signals, this device operates over a 3.0V to 5.5V supply range, allowing high-performance clock or data distribution in systems with a nominal 3.3V or 5.0V supply. For differential (LV)ECL operation, this device operates with a -3.0V to -5.5V supply.

The MAX9316A is offered in a 20-pin wide SO package.

Applications

  • Automated Test Equipment (ATE)
  • Central Office Backplane Clock Distribution
  • Data and Clock Driver and Buffer
  • DSLAM Backplane
  • Low-Jitter Data Repeater
  • Precision Clock Distribution
  • Wireless Base Stations
MAX9316A
1:5 Differential (LV)PECL/(LV)ECL/HSTL Clock and Data Driver

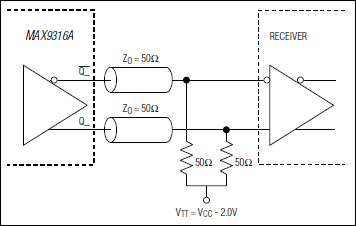

MAX9316A: Typical Application Circuit
