MAX9124

Quad LVDS Line Driver

Show More showmore-icon

Pin-Compatible Upgrade to DS90LV031

Part Details
Features
  • Pin Compatible with DS90LV031A
  • Guaranteed 800Mbps Data Rate
  • 250ps Maximum Pulse Skew
  • Conforms to TIA/EIA-644 LVDS Standard
  • Single +3.3V Supply
  • 16-Pin TSSOP and SO Packages
Additional Details
show more Icon

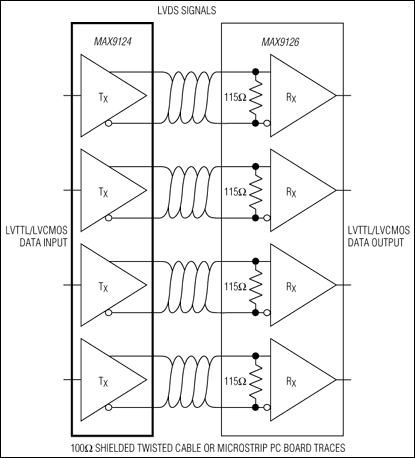

The MAX9124 quad low-voltage differential signaling (LVDS) line driver is ideal for applications requiring high data rates, low power, and low noise. The MAX9124 is guaranteed to transmit data at speeds up to 800Mbps (400MHz) over controlled impedance media of approximately 100Ω. The transmission media may be printed circuit (PC) board traces, backplanes, or cables.

The MAX9124 accepts four LVTTL/LVCMOS input levels and translates them to LVDS output signals. Moreover, the MAX9124 is capable of setting all four outputs to a high-impedance state through two enable inputs, EN and EN-bar, thus dropping the device to an ultra-low-power state of 16mW (typ) during high impedance. The enables are common to all four transmitters. Outputs conform to the ANSI TIA/EIA-644 LVDS standard.

The MAX9124 operates from a single +3.3V supply and is specified for operation from -40°C to +85°C. It is available in 16-pin TSSOP and SO packages. Refer to the MAX9125/MAX9126 data sheet for quad LVDS line receivers.

Applications

  • Cell Phone Base Stations
  • Copiers
  • High-Speed Access (Telecom)
  • LCD Displays and Panels
  • Local Multipoint Distribution Systems
  • Network Hubs, Switches, Routers
  • Printers and Faxes
  • Telecom Switches
  • Wireless Local Loop (WLL)
