MAX9110
Single/Dual LVDS Line Driver with Ultra-Low Differential Skew in SOT23
Industry's Lowest Pulse-Skew LVDS Drivers
Top
Overview
Features and Benefits
- Low 250ps (max) Pulse Skew for High-Resolution Imaging and High-Speed Interconnect
- Space-Saving 8-Pin SOT23 and SO Packages
- Pin-Compatible Upgrades to DS90LV017/017A and DS90LV027/027A (SO Packages)
- Guaranteed 500Mbps Data Rate
- Low 22mW Power Dissipation at 3.3V (31mW for MAX9112)
- Conform to EIA/TIA-644 Standard
- Single +3.3V Supply
- Flow-Through Pinout Simplifies PC Board Layout
- Driver Outputs High Impedance when Powered Off
Product Details
The MAX9110/MAX9112 single/dual low-voltage differential signaling (LVDS) transmitters are designed for high-speed applications requiring minimum power consumption, space, and noise. Both devices support switching rates exceeding 500Mbps while operating from a single +3.3V supply, and feature ultra-low 250ps (max) pulse skew required for high-resolution imaging applications, such as laser printers and digital copiers.
The MAX9110 is a single LVDS transmitter, and the MAX9112 is a dual LVDS transmitter.

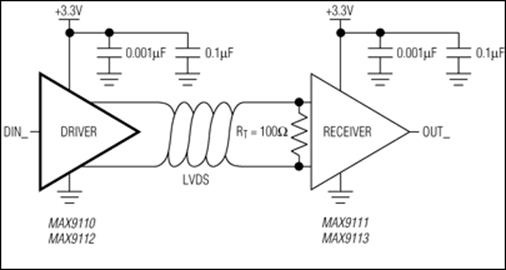

Both devices conform to the EIA/TIA-644 LVDS standard. They accept LVTTL/CMOS inputs and translate them to low-voltage (350mV) differential outputs, minimizing electromagnetic interference (EMI) and power dissipation. These devices use a current-steering output stage, minimizing power consumption, even at high data rates. The MAX9110/MAX9112 are available in space-saving 8-pin SOT23 and SO packages. Refer to the MAX9111/MAX9113 data sheet for single/dual LVDS line receivers.
Applications
- Bridges
- Cell Phone Base Stations
- Copiers
- High-Speed Access (Telecom)
- LCD Displays and Panels
- Network Hubs, Switches, Routers
- Printers and Faxes
- Routers/Switches
- Telecom Switches
- Wireless Local Loop (WLL)
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
