MAX9150

PRODUCTION

Low-Jitter, 10-Port LVDS Repeater

Industry's Lowest-Jitter Multiport LVDS Repeater

Data Sheet (Rev. 1) Product Selection Table

Part Models: 2
1ku List Price: Starting From $10.14

Viewing:

Overview

Ultra-Low 120ps_p-p (max) Total Jitter (Deterministic and Random)
100ps (max) Skew Between Channels
Guaranteed 400Mbps Data Rate
60µA Shutdown Supply Current
Conforms to EIA/TIA-644 LVDS Standard
Single +3.3V Supply
Fail-Safe Circuit Sets Output High for Undriven Inputs
High-Impedance LVDS Input when V_CC = 0V

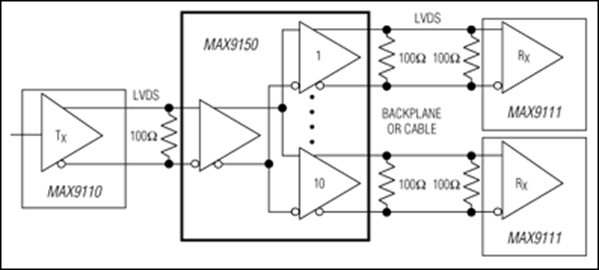

The MAX9150 low-jitter, 10-port, low-voltage differential signaling (LVDS) repeater is designed for applications that require high-speed data or clock distribution while minimizing power, space, and noise. The device accepts a single LVDS input and repeats the signal at 10 LVDS outputs. Each differential output drives a total of 50Ω, allowing point-to-point distribution of signals on transmission lines with 100Ω terminations on each end.

Ultra-low 120ps (max) peak-to-peak jitter (deterministic and random) ensures reliable communication in high-speed links that are highly sensitive to timing error, especially those incorporating clock-and-data recovery, or serializers and deserializers. The high-speed switching performance guarantees 400Mbps data rate and less than 100ps skew between channels while operating from a single +3.3V supply.

Supply current at 400Mbps is 160mA (max) and is reduced to 60µA (max) in low-power shutdown mode. Inputs and outputs conform to the EIA/TIA-644 LVDS standard. A fail-safe feature sets the outputs high when the input is undriven and open, terminated, or shorted. The MAX9150 is available in a 28-pin TSSOP package.

Refer to the MAX9110/MAX9112 and MAX9111/MAX9113 data sheets for LVDS line drivers and receivers.

Applications

Add/Drop Multiplexers
Backplane and Interconnect Applications
Cell Phone Base Stations
Clock/Data Distribution
Digital Cross-Connects
Network Routers and Switches

Part Models: 2
1ku List Price: Starting From $10.14

Documentation

Data Sheet 1

MAX9150: Low-Jitter, 10-Port LVDS Repeater Data Sheet (Rev.1) 12/18/2009

Technical Articles 3

High-Speed Signal Distribution Using Low-Voltage Differential Signaling (LVDS) 12/11/2001

LVDS Enables High-Speed Signal Distribution in 3G Base Stations 04/17/2002

LVDS Splitter Simplifies High-Speed Signal Distribution 12/13/2001

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX9150EUI+	Thin Shrink Small-Outline Package	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX9150EUI+T	Thin Shrink Small-Outline Package	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 11, 2018 - 1754N ASSEMBLY
		pcn_1754n
MAX9150EUI+	PRODUCTION
MAX9150EUI+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Interface Receivers 2
MAX9111	PRODUCTION	Single/Dual LVDS Line Receivers with Ultra-Low Pulse Skew in SOT23
MAX9113	PRODUCTION	Single/Dual LVDS Line Receivers with Ultra-Low Pulse Skew in SOT23
Level Translators & Buffers 2
MAX9110	PRODUCTION	Single/Dual LVDS Line Driver with Ultra-Low Differential Skew in SOT23
MAX9112	PRODUCTION	Single/Dual LVDS Line Driver with Ultra-Low Differential Skew in SOT23

Evaluation Kits

Evaluation Kit for the MAX9150

Buy Now View Details

Features and Benefits

Two Independent Repeater Circuits
Link Testing with LVDS Signals
Supports Testing of Various Media
- Coax Cable with SMA Connectors
- Twisted-Wire Pair
- PC Board Trace
Independent Supplies Allow Common-Mode Testing
Low-Voltage, Low-Power Operation
Fully Assembled and Tested

Product Details

The MAX9150 evaluation kit (EV kit) is a fully assembled and tested circuit board that simplifies the evaluation of the MAX9150 400Mbps, 10-port low-voltage differential signaling (LVDS) repeater. The MAX9150 accepts an LVDS signal and repeats it on 10 outputs. Output levels are LVDS into a double-terminated bus (100Ω at each end of the differential bus for a total 50Ω load). The EV kit contains two independent circuits, each with a MAX9150 repeater, that can be linked using various media or tested independently. The outputs can be sampled through SMA connectors or category-5 twisted-wire pair. The two circuits on the EV kit require +3.3V power supplies to operate.
