Overview

Features and Benefits

  • Over 2A Charge Current
  • Intel SMBus 2-Wire Serial Interface
  • ±0.6% Charge Voltage Accuracy
  • 11-Bit Charge Voltage Resolution
  • 6-Bit Charge Current Resolution
  • Adjustable Switching Frequency
  • +8V to +28V Input Voltage Range
  • Cycle-By-Cycle Current Limit
  • Charges Any Battery Chemistry (Li+, NiCd, NiMH, Lead Acid, etc.)
  • Small, 24-Pin TQFN
  • Product Details

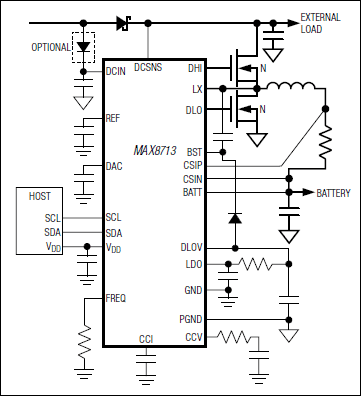

    The MAX8713 multichemistry battery charger simplifies construction of smart chargers with a minimum number of external components. It uses the Intel System Management Bus (SMBus™) to control the charge voltage and charge current. High efficiency is achieved through the use of a constant off-time step-down topology with synchronous rectification.

    The MAX8713 charges one to four lithium-ion (Li+) cells in series and delivers over 2A charge current—scalable with the sense resistor. The MAX8713 drives n-channel MOSFETs for improved efficiency and reduced cost. A low-offset charge-current-sense amplifier provides high accuracy charge current with small sense resistors.

    The MAX8713 is available in a space-saving 24-pin, 4mm x 4mm TQFN package and operates over the extended (-40°C to +85°C) temperature range. An evaluation kit is available to reduce design time.

    Applications

    • Digital Cameras
    • Handset Car Kits
    • Notebook Computers
    • PDAs and Tablet Computers
    • Portable Equipment with Rechargeable Batteries
