MAX86160

Integrated Heart-Rate Sensor for In-Ear Applications

Show More showmore-icon

Smallest Integrated Optical Heart Rate Sensor

alert : Obsolete tooltip
alert : Obsolete tooltip
Part Details
Part Models 2
1ku List Price
price unavailable
Features
  • Miniature 4.3mm x 2.8mm x 1.45mm 18-pin Optical Module
    • Optical-Grade, Robust Glass Eliminates Customer Cover Glass
  • High In-Band 13Hz Signal-to-Noise Ratio (SNR) Reflective Heart Rate Monitor and Medical-Grade Pulse Oximeter
  • Ultra Low-Power Operation for Mobile Device
    • Zero-Power Shutdown Current (0.7µA, typ)
  • -40°C to +85°C Operating Temperature Range
Additional Details
show more Icon

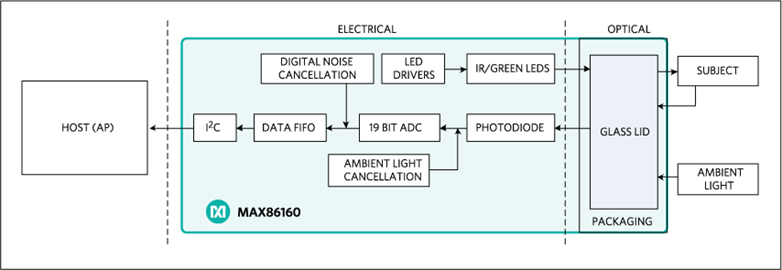

The MAX86160 is an integrated heart rate monitor sensor module designed for the demanding requirements of mobile, wearable, and hearable devices. It includes internal LEDs, photo-detector, and low-noise electronics with high-dynamic-range ambient light rejection. This integrated product has evaluation software available that includes algorithms for detecting heart rate. The MAX86160 sensor module takes care of the most challenging parts of the design for fast time-to-market in mobile and wearable devices.

The MAX86160 operates on a 1.8V supply voltage, with a separate 3.3V/5.0V power supply for the internal LEDs. Communication to and from the module occurs entirely through a standard I²C-compatible interface. The module can be shut down through software with near zero standby current, allowing the power rails to remain powered at all times.

Applications

  • Wearable and Hearable Devices
  • Smartphones/Tablets
  • Disposable Patch Sensors
  • Fitness Assistant Devices
Part Models 2
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX86160EFN+
  • HTML
  • HTML
MAX86160EFN+T
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 1

MAX86160EVSYS

Evaluation System for the MAX86160

zoom

MAX86160EVSYS

Evaluation System for the MAX86160

Evaluation System for the MAX86160

Features and Benefits

  • Quick Evaluation of the MAX86160
  • Supports Optimization of Configurations
  • Facilitates Understanding MAX86160 Architecture and Solution Strategy
  • Real-time Monitoring
  • Data Logging Capabilities
  • On-Board Accelerometer
  • Bluetooth LE

Product Detail

The MAX86160 Evaluation System (EVSYS) allows for the quick evaluation of the MAX86160 optical AFE for applications at various sites on the body, particularly in-ear applications. The MAX86160 supports a standard I2C-compatible interface. MAX86160 consists of two optical readout channels that can operate simultaneously (Green and IR). The EVSYS allows flexible configurations to optimize measurement signal quality at minimal power consumption, and helps the user quickly learn to configure and use the MAX86160.

The EVSYS consists of two circuit boards. The MAXSensorBLE is the main data acquisition board while the MAX86160_Flex_Bd_EVKIT is a sensor rigid-flex board. The EVSYS can be powered using the USB-C supply or LiPo Battery.

The EVSYS comes with a MAX86160EFN+ device in an 18-lead OESIP package.

Applications

  • Disposable Patch Sensors
  • Fitness Assistant Devices
  • Smartphones/Tablets
  • Wearable and Hearable Devices
