MAX847

1 Cell, Step-Up Two-Way Pager System IC

Show More showmore-icon

Complete Power Supply and Monitoring System with SPI™ Interface Simplifies Design, Saves Cost and Space

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.1a)
Documentation View All Documentation
Part Models 1
1ku List Price Starting From $6.38
Features
  • 80mA Output from 1 Cell at 90% Efficiency
  • 13µA Idle Mode™ (coast) Current
  • Selectable Low-Noise PWM or Low-Current Operation
  • PWM Operating Frequency Synchronized to Seven Times an External Clock Source
  • Operates at 270kHz with No External Clock
  • Automatic Backup-Battery Switchover
Additional Details
show more Icon

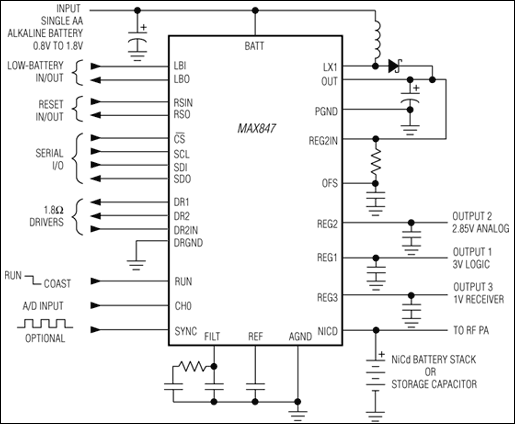

The MAX847 is a complete power-supply and monitoring system for two-way pagers or other low-power digital communications devices. It requires few external components. Included on-chip are:

  • A 1-cell input, 80mA output, synchronous-rectified boost DC-DC regulator with a digitally controlled +1.8V to +4.9V output
  • Three low-noise linear-regulator outputs
  • Three DAC-controlled comparators for software- driven 3-channel A/D conversion
  • SPI™-compatible serial interface
  • Reset and low-battery (LBO) warning outputs
  • Charger for NiCd, NiMH, lithium battery, or storage capacitor for RF PA power or system backup
  • Two 1.8Ω (typical) serial-controlled open-drain MOSFET switches

An evaluation kit for the MAX847 (MAX847EVKIT) is available to aid in design and prototyping.

Applications

  • 1-Cell Powered Handheld Equipment
  • GPS Receivers
  • Two-Way Paging
Show More Arrow image
file View Data Sheet (Rev.1a)
Documentation View All Documentation
Part Models 1
1ku List Price Starting From $6.38
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX847

Documentation

3
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

3

PDF Vector

PDF

UPDATED 10/01/1998
English

MAX847: 1 Cell, Step-Up Two-Way Pager System IC Data Sheet (Rev.1a)

Open PDF File

redirect
167.00K
download

Download PDF

PDF Vector

PDF

UPDATED 01/01/1900
Chinese

MAX847: 1节电池、升压型、双向寻呼机系统电源IC Data Sheet

Open PDF File

redirect
167.00K
download

Download PDF

PDF Vector

PDF

UPDATED 10/01/1998
Japanese

MAX847: 1セル、ステップアップ、双方向ページャシステムIC Data Sheet (Rev.1a)

Open PDF File

redirect
173.00K
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX847EEI+ 28-QSOP-150_MIL external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 13, 2023

- 2361N

WAFER FAB

MAX847EEI+

PRODUCTION

pdf

pcn_2361n

external-icon

Jan 24, 2019

- 1746N

ASSEMBLY

MAX847EEI+

PRODUCTION

pdf

pcn_1746n

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 13, 2023

- 2361N

arrow down

WAFER FAB

MAX847EEI+

PRODUCTION

pdf

pcn_2361n

external-icon
Jan 24, 2019

- 1746N

arrow down

ASSEMBLY

MAX847EEI+

PRODUCTION

pdf

pcn_1746n

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description

Product1
MAX769
popup image
Cart

2 or 3 Cell, Step-Up/Down, Two-Way Pager System IC

Evaluation Kits 1

MAX847EVKIT

Evaluation Kit for the MAX847

zoom

MAX847EVKIT

Evaluation Kit for the MAX847

download icon

Download

 print icon

Print
MAX847EVKIT
Evaluation Kit for the MAX847

Features and Benefits

  • 0.8V to 1.8V (1-cell boost) Battery Input Voltage
  • 1.8V to 4.9V Digitally Adjustable Output Voltage
  • Up to 80mA Total Output Current
  • Three Low-Noise Voltage Regulators
  • Charger for Small NiCd/NiMH/Lithium Battery or Storage Capacitor
  • 270kHz Switching Frequency
  • 15µA Idle Mode™ Current
  • Digitally Controlled 1.8Ω Switches for Vibrators, Beepers, etc.
  • Reset and Low-Battery Outputs
  • Surface-Mount Components
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAX847 evaluation kit (EV kit) provides a platform for evaluating the features of the MAX847. The MAX847 converts a 1-cell, 0.8V to 1.8V battery voltage to four separate output voltages. The main output voltage at OUT is digitally controlled from 1.8V to 4.9V in 100mV steps by a 3-wire SPI™ serial interface. OUT provides up to 80mA. The other outputs (REG1, REG2, and REG3) are low-noise linear-regulator outputs. The MAX847 offers numerous features for two-way paging and other low-power wireless designs. Consult the MAX847 data sheet for details. The MAX847 EV kit is a fully assembled and tested surface-mount circuit board.

The MAX769 is similar to the MAX847 except that it contains a buck/boost DC-DC converter (for 2-cell or 3-cell inputs) rather than a boost-only converter (for 1-cell inputs). To evaluate the MAX769, please order the MAX769EVKIT.

Applications

  • 1-Cell Powered Handheld Equipment
  • GPS Receivers
  • Two-Way Paging

Evaluation Kits1

MAX847EVKIT

Evaluation Kit for the MAX847
