MAX77726

PRE-RELEASE

22V, 3A Synchronous Buck Converter with Ultrasonic Mode

Data Sheet (Rev. 0) Product Selection Table
Viewing:

Overview

  • 3.6V to 22V Input Voltage Range
  • 1.8V to 15V Output Voltage Range
  • Low Current Consumption and High Efficiency
    • 100nA Shutdown Current
    • 800nA Quiescent Current in Low Power Mode
    • 96% Peak Efficiency
  • Integrated 50mΩ and 45mΩ Power MOSFETs
  • Up to 4.6A Inductor Peak Current Limit
  • MAX77726 Provides 3.3V, 5V, 9V, and 15V Regulation Target Voltage Selection using Two VSEL Pins
  • MAX77727 Provides Output Voltage Programmable from 1.8V to 15V Through I2C (with 100mV Resolution in the Range from 1.8V to 4.9V, and 250mV Resolution in the Range from 5V to 15V
  • MAX77726 Provides Pin Selectable Ultrasonic Mode
  • MAX77727 Provides I2C Selectable for Forced PWM Mode
  • Output Active Discharge Feature
  • Ease of Use and Small Solution Size
    • Cycle-by-Cycle Inductor Peak Current Limit, UVLO, Output Short Circuit, Over-Temperature Protection Features
    • 12-Pin, 0.4mm Pitch, 0.65mm Height Wafer- Level Package (WLP)
    • Use of Chip Type Inductors and Ceramic Capacitors
  • 1.32mm x 1.77mm, 12-WLP, 0.4mm Pitch Package

The MAX77726/MAX77727 provide power supply solutions for nano-power applications where size and efficiency are critical. They feature 4.6A inductor peak current protection and can deliver up to 3A output current.

The MAX77726's output voltages can be logically set through the VSEL pins for four specific output voltages. Physical enable pin and mode pin settings provide intuitive control.

The MAX77727's output voltages are programmable through I2C. It also allows MODE and enables selection through the I2C interface and status reading.

APPLICATIONS

  • USB Sourced Devices
  • Portable Electronics
  • 12V Distributed Power Bus Applications
MAX77726
22V, 3A Synchronous Buck Converter with Ultrasonic Mode

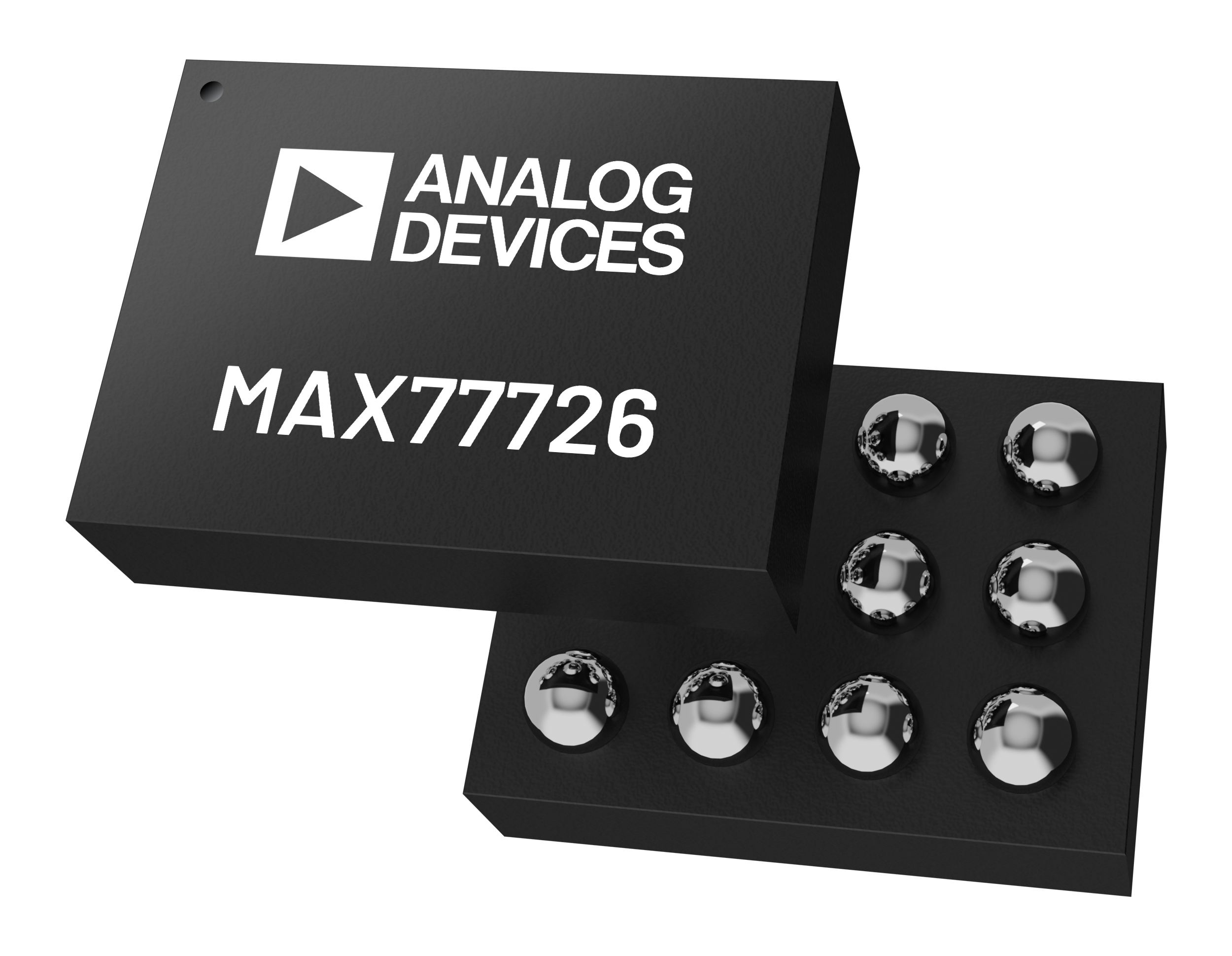

MAX77726-27 Simplified Application Diagram MAX77726-27 Functional Block Diagram MAX77726-27 Pin Configuration MAX77726 Chip Illustration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
MAX77726EVKIT

Evaluates MAX77726

Buy Now View Details

Features and Benefits

  • Proven PCB Reference Design and Layout
  • Easy to Use
    • Simple Hardware Control: Jumpers and Test Points for IN, EN, SEL, VL, and OUT
    • Fully Assembled and Tested

Product Details

The MAX77726 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the MAX77726, synchronous buck converter with ultrasonic mode.

The EV kit is a step-down voltage regulator circuit using the MAX77726 that is capable of a 3.6V to 22V input, 3A of continuous load, and an adjustable output voltage between 3.3V, 5.0V, 9.0V, and 15V using logic level on the VSEL1 and VSEL2 pins.
MAX77726EVKIT
Evaluates MAX77726
MAX77726EVKIT Evaluation Board Angle View MAX77726EVKIT Evaluation Board Top View MAX77726EVKIT Evaluation Board Bottom View
