MAX74801

PRE-RELEASE

30V, Low Noise, Precision Operational Amplifier

Low Noise, Precision Operational Amplifier

Data Sheet (Rev. 0) Product Selection Table
Viewing:

Overview

  • Offset voltage: 100μV maximum
  • Offset voltage drift: 1.5μV/°C maximum
  • MSL1 rated
  • Low-input bias current: 1.5nA maximum
  • Low-voltage noise density: 6.9nV/√Hz typical at f =1kHz
  • CMRR, PSRR, and AV > 120dB minimum
  • Low supply current: 400μA per amplifier typical
  • Gain bandwidth product: 3.6MHz
  • Dual-supply operation: ±2.5V to ±15V
  • Unity gain stable
  • No phase reversal
  • Long-term offset voltage drift (10,000hours): 0.5μV typical
MAX74801
30V, Low Noise, Precision Operational Amplifier

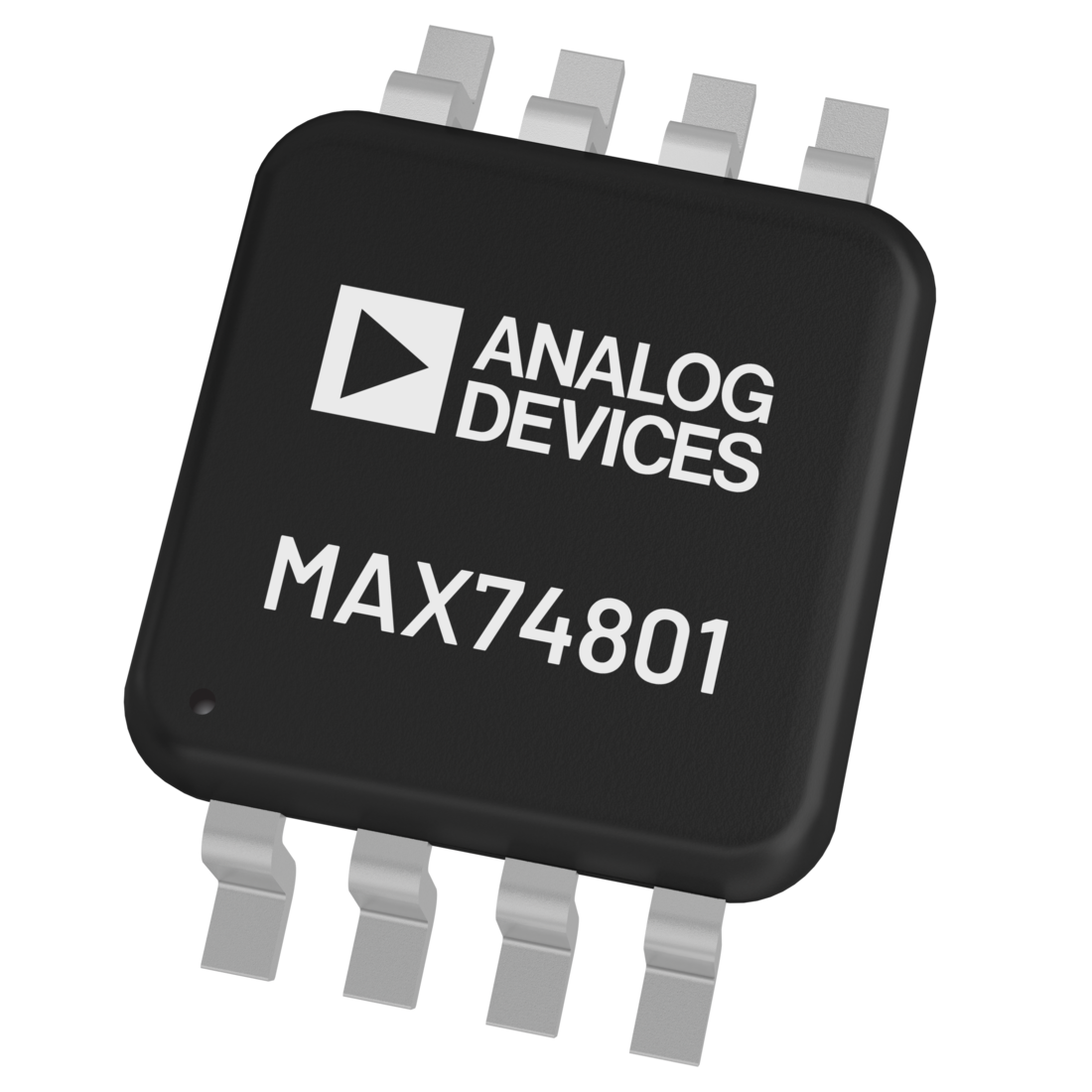

MAX74801 Pin Configuration MAX74801 Chip Illustration
