MAX6694

PRODUCTION

5-Channel Precision Temperature Monitor with Beta Compensation

Monitors One Local and Four Remote Temperatures, Including a Sub-65nm, Low-Beta Thermal Transistor

Part Models
3
1ku List Price
Starting From $3.87
Viewing:

Part Details

  • Four Thermal-Diode Inputs
  • Beta Compensation (Channel 1)
  • Local Temperature Sensor
  • 1.5°C Remote Temperature Accuracy (+60°C to +100°C)
  • Temperature Monitoring Begins at POR for Fail-Safe System Protection
  • Active-Low ALERT and Active-Low OVERT Outputs for Interrupts, Throttling, and Shutdown
  • Active-Low STBY Input for Hardware Standby Mode
  • Small, 16-Pin TSSOP and TQFN Packages
  • 2-Wire SMBus Interface
MAX6694
5-Channel Precision Temperature Monitor with Beta Compensation

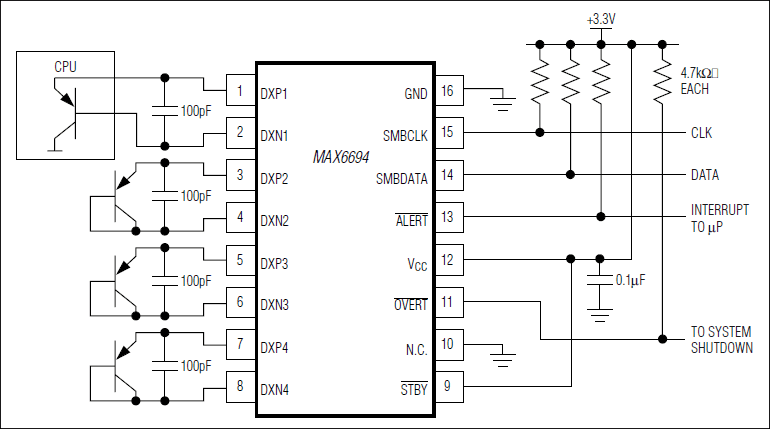

MAX6694: Typical Application Circuit
