MAX662A
12V, 30mA Flash Memory Programming Supply
12V Inductorless, Low-Profile Flash Memory Supply Fits in 0.1 Sq. Inch
Top
Overview
Features and Benefits
- Regulated +12V ±5% Output Voltage
- 4.5V to 5.5V Supply Voltage Range
- Fits in 0.1in²
- Guaranteed 30mA Output
- No Inductor—Uses Only 4 Capacitors
- 185µA Quiescent Current
- Logic-Controlled 0.5µA Shutdown
- 8-Pin Narrow SO and DIP Packages
Product Details

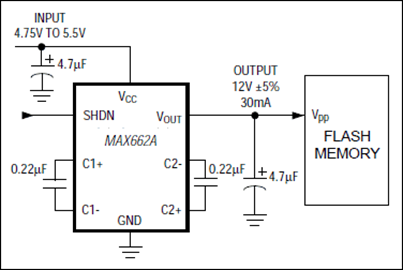

The MAX662A is a regulated +12V, 30mA-output, charge-pump DC-DC converter. It provides the necessary +12V ±5% output to program byte-wide flash memories, and requires no inductors to deliver a guaranteed 30mA output from inputs as low as 4.75V. It fits into less than 0.1in² of board space. The MAX662A is a pin-compatible upgrade to the MAX662, and is recommended for new designs. The MAX662A offers lower quiescent and shut-down currents, and guarantees the output current over all temperature ranges.
The MAX662A is the first charge-pump boost converter to provide a regulated +12V output. It requires only a few inexpensive capacitors, and the entire circuit is completely surface-mountable.
A logic-controlled shutdown pin that interfaces directly with microprocessors reduces the supply current to only 0.5µA. The MAX662A comes in 8-pin narrow SO and DIP packages.
For higher-current flash memory programming solutions, refer to the data sheets for the MAX734 (120mA output current, guaranteed) and MAX732 (200mA output current, guaranteed) PWM, switch-mode DC-DC converters.
Or, refer to the MAX761 data sheet for a 150mA, PFM switch-mode DC-DC converter that operates from inputs as low as 2V.
Applications
- +12V Flash Memory Programming Supplies
- Compact +12V Op-Amp Supplies
- Dual-Output +12V and +20V Supplies
- Switching MOSFETs in Low-Voltage Systems
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| MAX662ACPA+ | Material Declaration | Reliability Data | Plastic Dual-In-Line, Narrow (0.3in) | |
| MAX662ACSA+ | Material Declaration | Reliability Data | Small-Outline IC, Narrow (0.15in) | |
| MAX662ACSA+T | Material Declaration | Reliability Data | Small-Outline IC, Narrow (0.15in) | |
| MAX662AEPA+ | Material Declaration | Reliability Data | Plastic Dual-In-Line, Narrow (0.3in) | |
| MAX662AESA+ | Material Declaration | Reliability Data | Small-Outline IC, Narrow (0.15in) | |
| MAX662AESA+T | Material Declaration | Reliability Data | Small-Outline IC, Narrow (0.15in) | |
| Wafer Fabrication Data | MAX662A Reliability Data |
