MAX732

LAST TIME BUY

+12V/+15V Step-Up Current-Mode PWM Regulators

We Recommend Improved Performance Device, MAX618, for New Designs

Data Sheet (Rev. 2) Product Selection Table

Part Models: 3
1ku List Price: price unavailable

Viewing:

Overview

Load Currents Guaranteed to 200mA with No ExternalM OSFET (125mA tor MAX733)
170kHz High-Frequency Current-Mode PWM
Small Inductor and No Component Design Required
85% to 92% Efficiencies at Full Load
Overcurrent and Soft-Start Protection

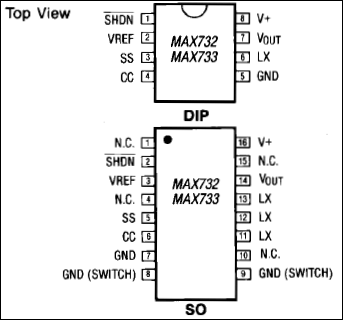

8-Pln DIP, 18-Pln Wide 80 Packages
Step-Up from a 4.0V lnput
Shutdown Pin

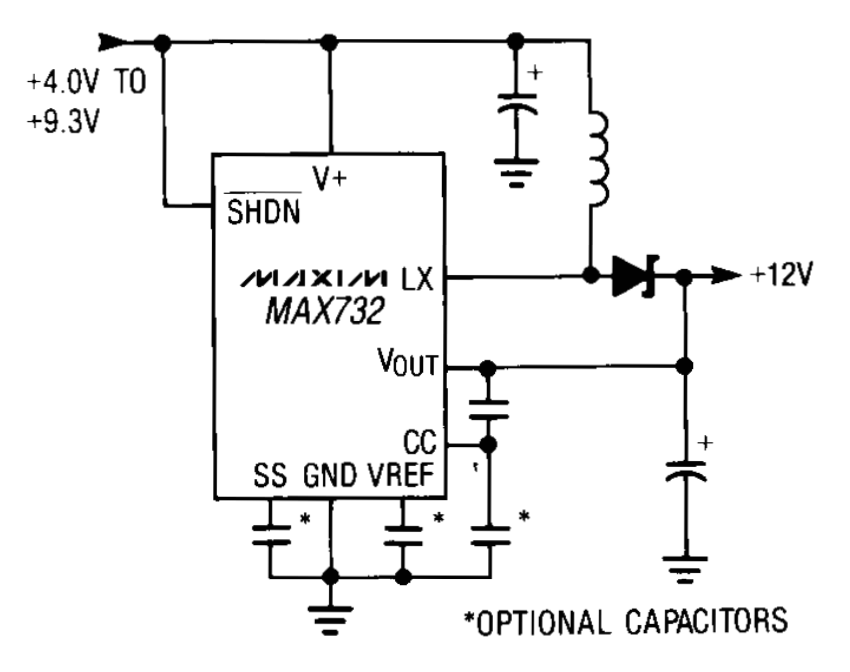

The MAX732/M733 are CMOS step-up DC-DC switch-mode regulators. The MAX732 Is a +12V regulator that accepts inputs from 4.0V to 9.3V and delivers up to 200mA of DC current. The MAX733 is a +15V regulator that delivers up to 125mA and accepts inputs from 4.0V to 11.0V. Typical full-load efficiencies are 85% to 92%. They require only a single inductor value of SOμH to function over their entire ranges, so no inductor-related design is necessary. Accuracy is guaranteed over temperature; line, and load variations. The MAX732/ MAX733 use a current-mode pulse-width modulation (PWM) controller to provide precise output regulation and low subharmonic noise. "typical no load supply current is 1.7mA. Fixed 170kHz oscillator frequencies allow easy filterlng of ripple and noise and provide for small external components.

The MAX732/MAX733 feature cycle-by-cycle current limiting, overcurrent limiting, undervoltage lockout, and programmable soft-start protection.

For an adjustable version of these devices, refer to the MAX752 data sheet. For lower-power step-up applications, refer to the MAX632/MAX633 and MAX642/ MAX643 data sheets. For more applications Information, refer to AN-4.1, MAX732 EV Surface-Mount Evaluation Board and Flash EEPROM Power Supply Application Notes.

APPLICATIONS

Flash Memory Programming Power Supply
Portable Instruments
Distributed Power Systems
Computer Peripherals
DC-DC Converter Module Replacement

Part Models: 3
1ku List Price: price unavailable

Documentation

Data Sheet 2

MAX732-MAX733: +12V/+15V Step-Up Current-Mode PWM Regulators Data Sheet (Rev.2) 03/01/1996

MAX73123: Military Datasheet 09/11/2023

Reliability Data 1

MAX732 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX732CWE+	Small-Outline IC, Wide (0.3in)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX732EPA+	8-PDIP-300_MIL	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX732MJA/883B	Ceramic Dual-In-Line, Narrow (0.3in)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Switching Regulators & Controllers 1
MAX618	PRODUCTION	28V, PWM, Step-Up DC-DC Converter
