MAX66242

DeepCover Secure Authenticator with ISO 15693, I²C, SHA-256, and 4Kb User EEPROM

Industry's First SHA-256 Symmetric Key-Based Authenticator with I²C Master Port

Buy Now

Recommended for New Designs

Top

Overview

Features and Benefits
Product Details

Features and Benefits

Complete Counterfeit/Cloning/IP Protection Engine
- SHA-256 Engine Runs a Symmetric Key-Based Bidirectional Secure Authentication
- Strong Authentication Achieved with a High Bit Count, User-Programmable Secret, and Input Challenge
- Batteryless RF Communication
- 4096 Bits of User EEPROM with User-Programmable Memory
- Memory R/W Protection Options Including OTP/EPROM Emulation Mode
- Unique Factory-Programmed 64-Bit Identification Number
- Integrated 32-Byte SRAM Buffer Enables Faster HF-to-I²C Transactions
Flexible Connection and Communication Capabilities Support a Wide Range of Applications
- Programmable I/O (PIO) Can Be Configured as a Wake-Up or Monitoring/Control Signal
- HF Standards ISO/IEC 15693 and 18000-3 MODE1 Compatible (13.56 MHz ±7kHz Carrier Frequency)

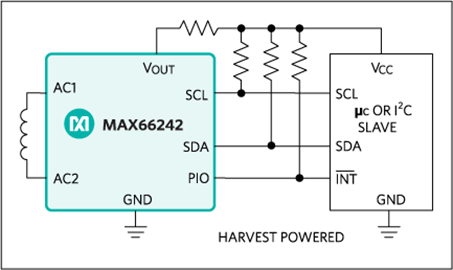

- I²C Interface—Master/Slave Port Eliminates Host Microcontroller for Sensor-Tag Applications
- Energy Harvesting V_OUT Pin for Powering External Components
- Optional 3.3V Supply Voltage Fits Line and Battery-Powered Applications
- -40°C to +85°C Operating Temperature Range
Enables Robust Design
- ±4kV HBM ESD Protection on PIO, ±2kV on All Other Pins

Product Details

DeepCover^® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.

Our Secure Drug Delivery video shows how Maxim security products can be used to authenticate remote drug delivery.

The DeepCover Secure Authenticator (MAX66242) is a transponder IC that combines an ISO/IEC 15693 and ISO 18000-3 Mode 1-compatible RF front-end, an I²C front-end, a FIPS 180-based SHA-256 engine and 4096 bits of user EEPROM in a single chip. A bidirectional security model enforces two-way authentication between a host system and the MAX66242. Each device has its own guaranteed unique 64-bit ROM ID that is factory programmed into the chip. This ROM ID is used as a fundamental input parameter for cryptographic operations and serves as an electronic serial number within the application.

In addition to the RF interface, the MAX66242 also has an I²C interface, which can operate as a slave or master port. When acting as a master, the MAX66242 can gather information from a connected sensor or peripheral device and relay its data via the RF port. When acting as a slave, the device can serve as an intermediary between a connected host and an RF reader. The MAX66242 can harvest energy from an active RF field. The configurable supply output can deliver up to 5mA given adequate field strength.

Applications

Access Control
Asset Tracking
Medical Sensor Authentication and Calibration
Printer Cartridge Configuration and Monitoring
System Intellectual Property Protection

Product Categories

Embedded Security and 1-Wire
- Secure Authenticators
- NFC/RFID Products

Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA). To request an NDA, click here.

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (2)

MAX66242EVKIT

Tag Evaluation Kit for the MAX66242, Requires NFC Reader

MAX66300-24XEVKIT

Reader and Tag Evaluation Kit for the MAX66300/MAX66240/MAX66242

MAX66242EVKIT

View Detailed Evaluation Kit Information

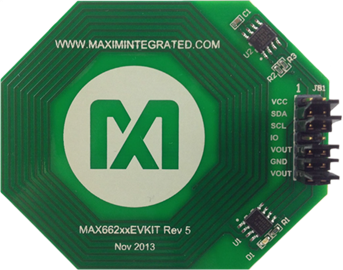

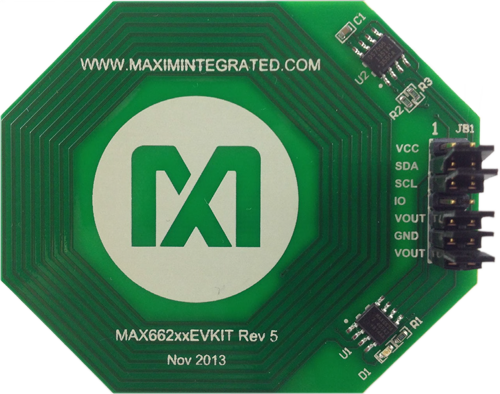

The MAX66242 evaluation kit (EV kit) reference board is a ready-to-use PCB that showcases one of Maxim’s MAX662XX family of secure dual-interface tag/transponder ICs. The board is built with a octagonal-shaped antenna construction (see the EV Kit Photo and Figure 2) tuned to 13.56MHz.
