MAX66300

DeepCover Secure Authenticator with SHA-256 and RFID Reader

Show More showmore-icon

Industry's First HF RFID Transceiver IC with SHA-256 Engine for Secure Challenge-Response Authentication

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price
price unavailable
Features
  • Secure, Contactless Host Authenticator
    • ISO/IEC 15693 and 14443 Type A Standard Compliant
    • SHA-256 Engine to Run a Symmetric Key-Based Bidirectional Secure Authentication
    • Four 32-Byte Pages of User Memory
    • Four Master Secrets with Multiple Programmable Protection Options
    • 76-Byte Scratchpad in SRAM
    • True Hardware Random-Number Generator
    • Unique 64-Bit Serial Number
  • Design Flexibility Supports Diverse Applications
    • UART and SPI Interface Ports
    • Power-Down Mode by an Input Pin (Low, Standby Power)
    • Antenna Short-Circuit Protection
    • Compatible with 3.3V or 5V Supply Voltages
    • ±2kV HBM ESD Protection
  • Scalable 13.56MHz Analog Front-End Provides Support for Multiple Antenna Configurations
    • Single- or Double-Antenna Driver Using On-Off Keying (OOK) Modulation
    • User-Selectable ASK Uplink Modulations Index Adjustable from 7% Up to 30%
    • High Output RF Power of Up to 200mW
    • Multiple Receiver Inputs for High-Communication Reliability
    • Built-In Receiver Lowpass-Filter Cutoff Frequencies Selectable Between 400kHz and 1MHz
    • Built-In Receiver Highpass-Filter Cutoff Frequency Selectable Among 100kHz, 200kHz, and 300kHz
    • Selectable Receive Gain from 0dB up to 40dB
    • Multiple Subcarrier Receiving Compatibility (212kHz and 424kHz)
  • Antenna Short-Circuit Protection Enhances System Ruggedness
Additional Details
show more Icon

DeepCover® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.

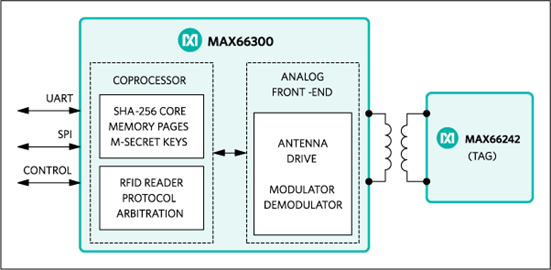

The DeepCover Secure Authenticator (MAX66300) combines a highly integrated RFID reader for contactless communication at 13.56MHz and a SHA-256 secure authenticator coprocessor. The RFID IC reader covers both the ISO 14443 Type A and the ISO 15693 standard. The authenticator coprocessor’s engine is based on the FIPS 180-4 standard and supports secure challenge-and-response authentication when paired with peripherals such as the Maxim MAX66240/ MAX66242 family of tag solutions. An embedded host processor can easily interface with the MAX66300 using its UART or SPI interface.

Applications

  • Asset-Tracking Readers
  • Authentication of Consumables
  • Blood Glucose Meters/Monitors
  • Handheld Reader Modules
  • Readers in Printers (Ink Cartridge)
  • Secure Access Control
