DS28S60

DeepCover Cryptographic Coprocessor with ChipDNA

Show More showmore-icon

The DS28S60 Facilitates the Implementation of Full Security for Embedded, Connected Products

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $0.89
Features
  • Secure Coprocessor with NIST-Compliant Hardware-Based Crypto
    • FIPS-180 SHA-256 MAC and FIPS-198 HMAC Hash
    • FIPS-197 AES-128 with GCM
    • FIPS-186 ECDSA-P256 Elliptic Curve Digital Signature/Verification
    • SP800-56A ECDHE-P256 Key Exchange
    • SP800-90B Compliant TRNG
  • Robust Countermeasures Protect Against Security Attacks
    • ChipDNA Produced Key Cryptographically Protects All Stored Data
    • Actively Monitored Die Shield Detects and Reacts to Intrusion Attempts
  • Enables Fast Time-to-Market with Easy End Application Integration
    • Fixed-Function Command Set, No Device-Level Firmware
    • C-Source Demos for Examples of SW Development
    • 3.6KB Flash Array for Secure Key, Certificate, and Data Storage
  • High-Speed Interface for Host Microcontroller Communication
    • 20MHz SPI with Mode 0 or Mode 3 Operation
  • Supplemental Features Enable Easy Integration into End Applications
    • Unique and Unalterable Factory-Programmed, 64-Bit Identification Number (ROM ID)
    • Low-Power Operation
      • 100nA Power-Down Mode
      • 0.35mA Idle
    • 12-Pin 3mm x 3mm TDFN
  • -40°C to +105°C, 1.62V to 3.63V
  • Additional Details
    show more Icon

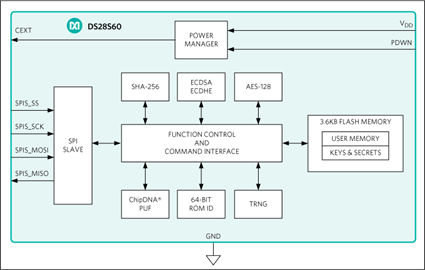

    The DS28S60 DeepCover® cryptographic coprocessor easily integrates into embedded systems enabling confidentiality, authentication and integrity of information. With a fixed command set and no device-level firmware development required, the DS28S60 makes it fast and easy to implement full security for IoT devices. Communication with the device is performed using the industry-standard SPI slave interface at up to 20Mbps with a simple set of commands that provide a comprehensive security toolbox utilizing hardware-based cryptographic blocks. As a co-processor to an SPI-interfaced host controller, the command functionality includes ECDSA-P256 signature and verification, SHA-256 based digital signature, AES-128 packet encryption/decryption, ECDHE key exchange for session key generation, and access to high-quality random numbers. An NIST SP800-90B compliant true random number generator (TRNG) is integrated for on-chip cryptographic operations as well as providing random data and nonces to the host controller, if required. Nonvolatile storage for secrets, certificates, public/private keys, and application-specific sensitive data is supported with 3.6KB of secured flash memory.

    The DS28S60 integrates Maxim’s patented ChipDNA™ feature, a physically unclonable function (PUF) to provide a cost-effective solution with the ultimate protection against security attacks. Using the random variation of semiconductor device characteristics that naturally occur during wafer fabrication, the ChipDNA circuit generates a unique output value that is repeatable over time, temperature, and operating voltage. Attempts to probe or observe ChipDNA operation modifies the underlying circuit characteristics, preventing discovery of the unique value used by the chip's cryptographic functions. ChipDNA output is utilized as key content to cryptographically secure all device-stored data.

    Applications

    • End-Point Authentication
    • End-to-End Encryption
    • Internet of Things (IoT) Device Security
    • Key Management and Exchange
    • Prevention of Counterfeit Products
    Part Models 2
    1ku List Price Starting From $0.89

    close icon
    Documentation

    Documentation

    Video

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
    DS28S60Q+
    • HTML
    • HTML
    DS28S60Q+T
    • HTML
    • HTML
    Software & Part Ecosystem

    Software & Part Ecosystem

    Can't find the software or driver you need?

    Request a Driver/Software
    Evaluation Kit

    Evaluation Kits 1

    reference details image

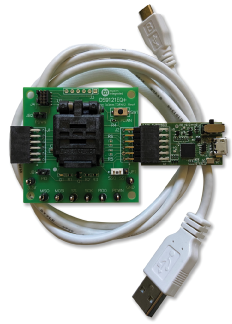

    DS28S60EVKIT

    Evaluation Kit for the DS28S60

    zoom

    DS28S60EVKIT

    Evaluation Kit for the DS28S60

    Evaluation Kit for the DS28S60

    Features and Benefits

    • Demonstrates the Features of the DS28S60 DeepCover® Secure Coprocessor
    • SPI Communication is Logged to Aid Firmware Designers Understanding of DS28S60
    • SPI/1-Wire/I2C USB Adapter Creates a Virtual COM Port on Any PC
    • Fully Compliant with USB Specification v2.0
    • Software Runs on Windows 10, Windows 8, and Windows 7 for Both 64-Bit and 32-Bit Versions
    • 3.3V ±3% Operating Voltage
    • Convenient On-Board Test Points, TDFN Socket
    • Evaluation Software Available by Request

    Product Detail

    The DS28S60 evaluation system (EV system) provides the hardware and software necessary to exercise the features of the DS28S60. The EV system consists of five DS28S60Q+ devices in a 12-pin TDFN package, a DS9121EQ+ evaluation TDFN socket board, and a DS9482P# USB-to-I2C/SPI/1-Wire® adapter. The evaluation software runs under Windows® 10, Windows 8, and Windows 7 operating systems, both 64-bit and 32-bit versions. It provides a handy user interface to exercise the features of the DS28S60.

    Applications

    • End-Point Authentication
    • End-to-End Encryption
    • Internet of Things (IoT) Device Security
    • Key Management and Exchange
    • Prevention of Counterfeit Products
    Reference Designs

    Reference Designs 1

    MAXREFDES9001: Secured IoT LoRa Sensor Nodes using the DS28S60 and Google Cloud

    Secured IoT LoRa Sensor Nodes using the DS28S60 and Google Cloud

    zoomopens a dialog

    MAXREFDES9001

    Secured IoT LoRa Sensor Nodes using the DS28S60 and Google Cloud

    Secured IoT LoRa Sensor Nodes using the DS28S60 and Google Cloud

    Features and Benefits

    • Maxim’s DS28S60 ChipDNA technology protects private and secret keys against invasive attacks.
    • Maxim’s DS28S60 provides end-to-end security using hardware-based ECDSA authentication, ECDH key exchange and AES-GCM authenticated encryption.
    • Complete low-power sensor node board design
    • Sample LoRaWAN gateway implementation based on Raspberry Pi
    • Sample Google Cloud application showcasing end-to-end security with the sensor board’s DS28S60 including ECDH key exchange, and AES-GCM secure communication Source code
    • Peripheral Module - compatible sensor expansion port
    • Raspberry Pi enables portable LoRaWAN Gateway deployment
    View Detailed Reference Design external link
