MAX6377

3-Pin, Ultra-Low-Power SC70/SOT23 Voltage Detectors

Industry's Smallest, Lowest-Power Voltage Detectors

PRODUCTION

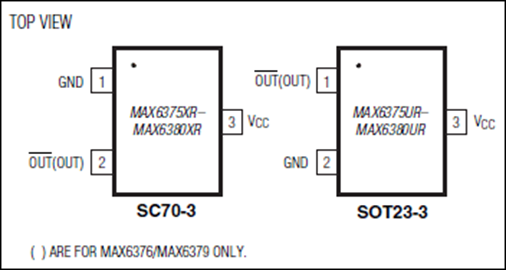

MAX6375, MAX6376, MAX6377, MAX6378, MAX6379, MAX6380: Pin Configuration slide

MAX6375, MAX6376, MAX6377, MAX6378, MAX6379, MAX6380: Pin Configuration

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 26

1ku List Price Starting From $1.88

Features

Ultra-Low 500nA Supply Current (MAX6375/MAX6376/MAX6377)
Thresholds Available from 2.20V to 4.63V in Approximately 100mV Increments
±2.5% Threshold Accuracy Over Temperature
Low Cost
Available in Three Versions: Push-Pull active-low OUT, Push-Pull OUT, and Open-Drain active-low OUT
Power-Supply Transient Immunity
No External Components
Available in Either a 3-Pin SC70 or 3-Pin SOT23 Package

Additional Details

The MAX6375-MAX6380 are ultra-low-power circuits used for monitoring battery, power-supply, and regulated system voltages. Each detector contains a precision bandgap reference, comparator, and internally trimmed resistors that set specified trip threshold voltages. These devices provide excellent circuit reliability and low cost by eliminating external components and adjustments when monitoring nominal system voltages from 2.5V to 5V.

These circuits perform a single function: they assert an output signal whenever the V_CC supply voltage falls below a preset threshold. The devices are differentiated by their output logic configurations and preset threshold voltages. The MAX6375/MAX6378 (push-pull) and MAX6377/MAX6380 (open-drain) have an active-low output (active-low OUT is logic low when V_CC is below V_TH). The MAX6376/MAX6379 have an active-high push-pull output (OUT is logic high when V_CC is below V_TH). All parts are guaranteed to be in the correct output logic state for V_CC down to 1V. The detector is designed to ignore fast transients on V_CC. The MAX6375/MAX6376/ MAX6377 have voltage thresholds between 2.20V and 3.08V in approximately 100mV increments. The MAX6378/MAX6379/MAX6380 have voltage thresholds between 3.30V and 4.63V in approximately 100mV increments.

Ultra-low supply current of 500nA (MAX6375/MAX6376/MAX6377) makes these parts ideal for use in portable equipment. All six devices are available in a space-saving SC70 package or in a tiny SOT23 package.

Applications

Load Switching/Power Sequencing
Portable Battery-Powered Equipment
Power-Supply Monitoring in Digital/Analog Systems
Precision Battery Monitoring
