MAX5858A

PRODUCTION

Dual, 10-Bit, 300Msps, DAC with 4x/2x/1x Interpolation Filters and PLL

Data Sheet (Rev. 0) Product Selection Table

Part Models: 1
1ku List Price: Starting From $14.23

Viewing:

Overview

10-Bit Resolution, Dual DAC
300Msps Update Rate
Integrated 4x/2x/1x Interpolating Filters
Internal PLL Multiplier
2.7V to 3.3V Single Supply
Full Output Swing and Dynamic Performance at 2.7V Supply
Superior Dynamic Performance
- 73dBc SFDR at f_OUT = 20MHz
- UMTS ACLR = 63dB at f_OUT = 30.7MHz
Programmable Channel Gain Matching
Integrated 1.24V Low-Noise Bandgap Reference
Single-Resistor Gain Control
Interleave Data Mode
Differential Clock Input Modes
EV Kit Available—MAX5858AEVKit

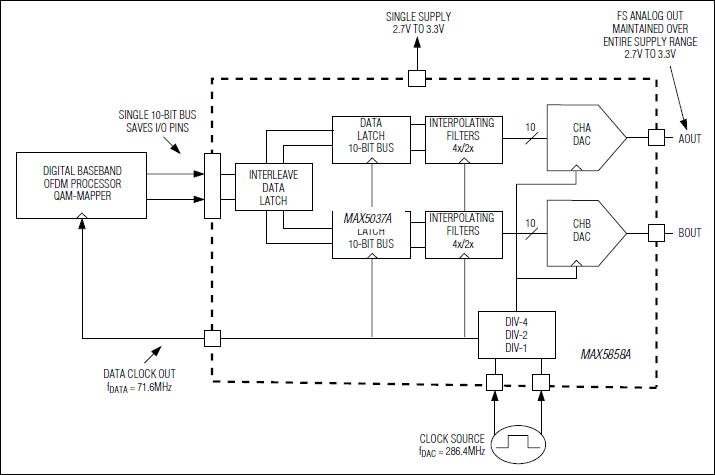

The MAX5858A dual, 10-bit, 300Msps digital-to-analog converter (DAC) provides superior dynamic performance in wideband communication systems. The MAX5858A integrates two 10-bit DAC cores, 4x/2x/1x programmable digital interpolation filters, phase-lock loop (PLL) clock multiplier, and a 1.24V reference. The MAX5858A supports single-ended and differential modes of operation. The MAX5858A dynamic performance is maintained over the entire power-supply operating range of 2.7V to 3.3V. The analog outputs support a compliance voltage of -1.0V to +1.25V.

The 4x/2x/1x programmable interpolation filters feature excellent passband distortion and noise performance. Interpolating filters minimize the design complexity of analog reconstruction filters while lowering the data bus and the clock speeds of the digital interface. The PLL multiplier generates all internal, synchronized high-speed clock signals for interpolating filter operation and DAC core conversion. The internal PLL helps minimize system complexity and lower cost. To reduce the I/O pin count, the DAC can also operate in interleave data mode. This allows the MAX5858A to be updated on a single 10-bit bus.

The MAX5858A features digital control of channel gain matching to within ±0.4dB in sixteen 0.05dB steps. Channel matching improves sideband suppression in analog quadrature modulation applications. The on-chip 1.24V bandgap reference includes a control amplifier that allows external full-scale adjustments of both channels through a single resistor. The internal reference can be disabled and an external reference can be applied for high-accuracy applications.

The MAX5858A features full-scale current outputs of 2mA to 20mA and operates from a 2.7V to 3.3V single supply. The DAC supports three modes of power-control operation: normal, low-power standby, and complete power-down. In power-down mode, the operating current is reduced to 1µA.

The MAX5858A is packaged in a 48-pin TQFP with exposed paddle (EP) for enhanced thermal dissipation and is specified for the extended (-40°C to +85°C) operating temperature range.

Applications

Communications
Direct Digital Synthesis (DDS)
Instrumentation/ATE
Point-to-Point Microwave Links
SatCom, LMDS, MMDS, HFC, DSL, WLAN,
Wireless Base Stations

Part Models: 1
1ku List Price: Starting From $14.23

Documentation

Data Sheet 1

MAX5858A: Dual, 10-Bit, 300Msps, DAC with 4x/2x/1x Interpolation Filters and PLL Data Sheet (Rev.0) 11/11/2003

Technical Articles 2

Synchronizing Multiple High-Speed Multiplexed DACs for Transmit Applications 09/21/2006

Differential Gain and Phase—Why Measure It, if You Cannot See It? 05/23/2011

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX5858AECM+D	48-TQFP_EP-7X7X1.0	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 26, 2016 - 1589A ASSEMBLY
		pcn_1589a
MAX5858AECM+D	PRODUCTION	pcn_1589a

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Digital to Analog Converters (DACs) 1
MAX5858	PRODUCTION	Dual, 10-Bit, 300Msps, Current-Output DAC with 4x/2x/1x Interpolation Filters

Evaluation Kits

Evaluation Kit for the MAX5858A, MAX5858, and MAX5856A

Buy Now View Details

Features and Benefits

Allows Fast Evaluation and Performance Testing
3V and 2V CMOS Logic-Level-Compatible Inputs
Also Evaluates MAX5858/MAX5856A (with IC Replacement)
Configurable, Integrated 4x or 2x Interpolation Filters
Interleaved Data Mode
On-Board Differential to Single-Ended Output Conversion Circuitry
SMA Coaxial Connectors for Clock Inputs and DAC Outputs
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX5858A evaluation kit (EV kit) is a fully assembled and tested circuit board that contains all the components necessary for evaluating the MAX5858A. The MAX5858A is a dual,10-bit, 300Msps digital-to-analog converter (DAC) with 4x/2x/1x-configurable interpolation filters. The MAX5858A also features a phase-locked-loop (PLL) clock multiplier that generates and distributes all internally synchronized high-speed clock signals required by the input data latches, interpolation filters, and DAC cores. The EV kit requires CMOS-compatible data and clock inputs, and three separate 3V power supplies. The EV kit can also evaluate the MAX5858 (no PLL) and the 8-bit MAX5856A (with PLL).
