MAX5719

16- and 20-Bit Voltage DACs

Show More showmore-icon

Industry's Highest Performance DACs in 14 Pin Standard Pin-Out

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $18.67
Features
  • 16 and 20-Bit resolution
  • 1LSB INL (Max, 16-bit)
  • ±0.5 LSB DNL (Max, 16-Bit)
  • 750ns Settling Time (typ)
  • 0.05 nV-sec Glitch Energy
  • 6nv/√Hz Output Noise Density
  • Integrated ±0.025% (max) Bipolar Setting Resistors
  • 4.5V to 5.5V Supply Range
  • 4.0V to VDD Reference Input Range
  • Safe Power-Up Reset-to-Zero-Scale DAC Output (Unipolar)
  • 50MHz 3-Wire SPI Interface
  • -40°C to +105°C Operating Temperature Range.
  • SO-14 Package
Additional Details
show more Icon

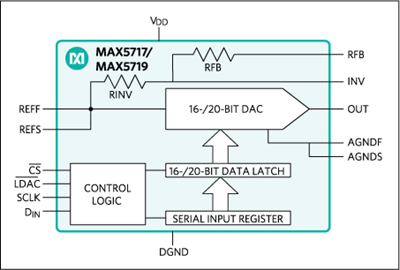

The MAX5717 and MAX5719 are serial-input, unbuffered 16 and 20-bit voltage-output unipolar digital-to-analog converters (DACs) with integrated feedback resistors that allow bipolar operation when used with an external operational amplifier. These DACs provide low glitch energy, low noise, tight bipolar resistor matching, and high accuracy. The DACs feature 1LSB INL (max, MAX5717A) over the temperature range of -40°C to +105°C. Integrated precision setting resistors make the DACs easy to use. The MAX5717 and MAX5719 feature a 50MHz, 3-wire SPI™, QSPI™, MICROWIRE™, and DSP-compatible serial interface.

On power-up, the output resets to zero-scale, providing additional safety for applications which drive valves or other transducers that need to be off on power-up. The DAC output settles in 750ns and has a low offset and gain drift of ±0.1 ppm/°C of FSR.

The MAX5717 is functionally similar to the MAX542, but with significantly faster settling time. The MAX5719 provides a similar speed improvement as well as an increase in resolution to 20 bits.

Applications

  • Automatic Test Equipment
  • Automatic Tuning
  • Communication Systems
  • Data-Acquisition Systems
  • Gain and Offset Adjustment
  • Portable Instrumentation
  • Process Control and Servo Loops
  • Programmable Voltage and Current Sources
  • Test and Measurement Equipment
Part Models 4
1ku List Price Starting From $18.67

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX5719AGSD+
  • HTML
  • HTML
MAX5719AGSD+T
  • HTML
  • HTML
MAX5719GSD+
  • HTML
  • HTML
MAX5719GSD+T
  • HTML
  • HTML
Evaluation Kit

Evaluation Kits 3

reference details image

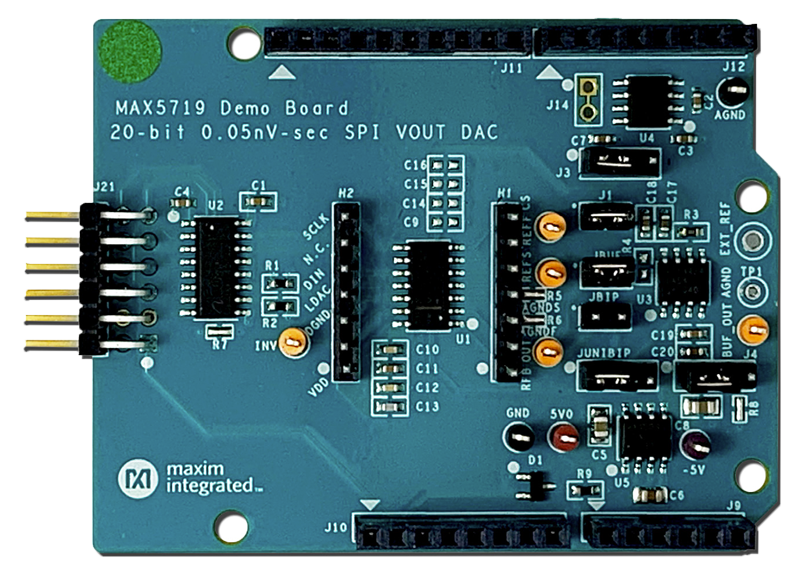

MAX5719BOB

MAX5719 Breakout Board

zoom

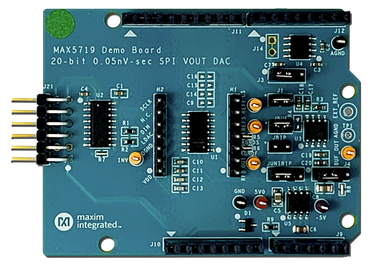

MAX5719BOB

MAX5719 Breakout Board

MAX5719 Breakout Board

Product Detail

Digital-to-analog converters (DACs) provide accurate output voltages for actuation and control in many electronic applications such as industrial, medical, and RF systems. The MAX5719 is a highly accurate, 20-bit voltage output DAC featuring low glitch energy of 0.05nV-second. Development with DACs involves expertise in analog systems, power supplies, digital interfaces, and firmware. Now, accelerate the development process using the MAX5719 breakout board.

The MAX5719 breakout board provides for rapid prototyping and development with the MAX5719 (a 20-bit, voltageoutput DAC). It interfaces to any Arduino™-compatible or Mbed-compatible platform system with expansion ports configurable for SPI communication. Additionally, the breakout board works with systems that have a Pmod™ connection, a 2 x 6 right-angle header at board edge (compatible with Digilentinc.com Pmod™ interface spec) Interface type 2A (expanded SPI) on 2 x 6 header at the board edge. The breakout board also comes with schematics, design files, and firmware for immediate use and forking to future projects.

Applications

  • Automatic Test Equipment
  • Automatic Tuning
  • Communication Systems
  • Data-Acquisition Systems
  • Gain and Offset Adjustment
  • Portable Instrumentation
  • Process Control and Servo Loops
  • Programmable Voltage and Current Sources
  • Test and Measurement Equipment

MAX5719EVKIT

Evaluation Kit for the MAX5717/MAX5719

zoom

MAX5719EVKIT

Evaluation Kit for the MAX5717/MAX5719

Evaluation Kit for the MAX5717/MAX5719

Features and Benefits

  • On-Board SPI Controller
  • On-Board Output Buffer (MAX9632)
  • On-Board +4.096V Reference Voltage (MAX6126)
  • Windows® XP, Windows® 7/8/8.1/10-Compatible Software

Product Detail

The MAX5717/MAX5719 evaluation kit (EV kit) demonstrates the MAX5717/MAX5719, 16/20-bit DAC. The EV kit includes a graphical user interface (GUI) that provides communication over SPI with an on-board master IC.

The MAX5717 EV kit comes with the MAX5717GSD+ installed and the MAX5719 comes with the MAX5719GSD+ installed.

Applications

  • Automatic Test Equipment
  • Automatic Tuning
  • Communication Systems
  • Data-Acquisition Systems
  • Gain and Offset Adjustment
  • Portable Instrumentation
  • Process Control and Servo Loops
  • Programmable Voltage and Current Sources
  • Test and Measurement Equipment

MAX5717EVKIT

Evaluation Kit for the MAX5717/MAX5719

zoom

MAX5717EVKIT

Evaluation Kit for the MAX5717/MAX5719

Evaluation Kit for the MAX5717/MAX5719

Features and Benefits

  • On-Board SPI Controller
  • On-Board Output Buffer (MAX9632)
  • On-Board +4.096V Reference Voltage (MAX6126)
  • Windows® XP, Windows® 7/8/8.1/10-Compatible Software

Product Detail

The MAX5717/MAX5719 evaluation kit (EV kit) demonstrates the MAX5717/MAX5719, 16/20-bit DAC. The EV kit includes a graphical user interface (GUI) that provides communication over SPI with an on-board master IC.

The MAX5717 EV kit comes with the MAX5717GSD+ installed and the MAX5719 comes with the MAX5719GSD+ installed.

Applications

  • Automatic Test Equipment
  • Automatic Tuning
  • Communication Systems
  • Data-Acquisition Systems
  • Gain and Offset Adjustment
  • Portable Instrumentation
  • Process Control and Servo Loops
  • Programmable Voltage and Current Sources
  • Test and Measurement Equipment
