Overview

Features and Benefits

  • Operate from Single +5V Supply or Dual ±5V Supplies
  • Output Buffer Amplifiers Swing Rail-to-Rail
  • Reference Input Range Includes Both Supply Rails
  • Factory-Calibrated for 1 LSB TUE
  • Double-Buffered Digital Inputs (MAX505)
  • Microprocessor and TTL/CMOS Compatible
  • Require No External Adjustments
  • Pin-Compatible Upgrades to MX7225/MX7226
  • Now Available in Tiny SSOP Package

Product Details

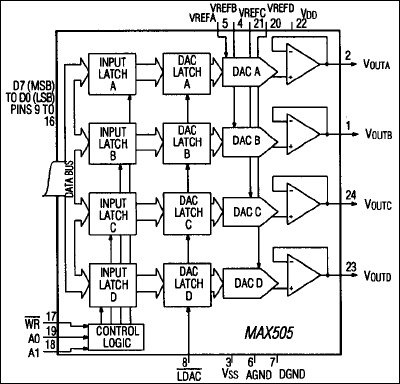

The MAX505 and MAX506 are CMOS, quad, 8-bit voltage-output digital-to-analog converters (DACs). The parts operate with a single +5V supply or a dual ±5V supplies. Internal, precision output buffers swing rail-to-rail. The reference input range includes both supply rails. Offset, gain, and linearity are factory calibrated to provide 1 LSB total unadjusted error (TUE) over the full operating temperature range.

The MAX505 contains double-buffered logic inputs, which allow all analog outputs to be simultaneously updated using the asynchronous load DAC (active-low LDAC) control signal. The MAX505 also has four separate reference inputs, allowing each DAC’s full-scale range to be independently set. The MAX506 has separate inputs latches for each of its four DACs. Data is transferred to the input latches from a common 8-bit input port. The DACs are individually selected through address inputs A0 and A1, and updated by bringing active-low WR low. All MAX506 DACs share a common reference input. All logic inputs are TTL and +5V CMOS compatible.

Applications

  • Arbitrary Function Generators
  • Automatic Test Equipment
  • Digital Offset/Gain Adjustment
  • Industrial Process Control
  • Minimum Component Count Analog Systems
  • Programmable Attenuators

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Product Recommendations

MAX506 Companion Parts

Recommended Related Parts

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
MAX506ACPP+ Material Declaration Reliability Data Plastic Dual-In-Line, Narrow (0.3in)
MAX506ACWP+ Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MAX506ACWP+T Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MAX506AEPP+ Material Declaration Reliability Data Plastic Dual-In-Line, Narrow (0.3in)
MAX506AEWP+ Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MAX506AEWP+T Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MAX506BCPP+ Material Declaration Reliability Data Plastic Dual-In-Line, Narrow (0.3in)
MAX506BCWP+ Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MAX506BCWP+T Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MAX506BEWP+ Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MAX506BEWP+T Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
