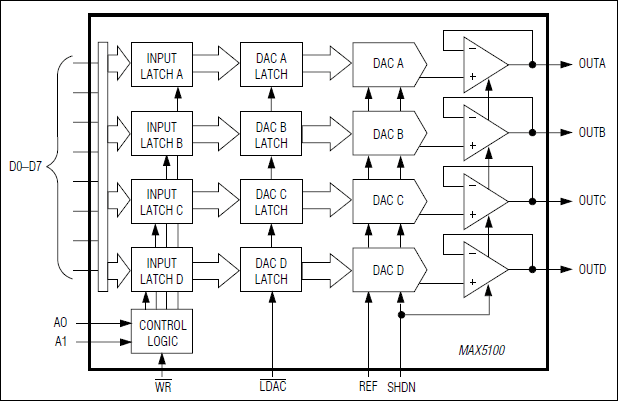

MAX5100
+2.7V to +5.5V, Low-Power, Quad, Parallel 8-Bit DAC with Rail-to-Rail Voltage Outputs
Show MoreLowest-Power, Quad, Parallel 8-Bit DAC
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- +2.7V to +5.5V Single-Supply Operation
- Ultra-Low Supply Current
- 0.4mA while Operating
- 1nA in Shutdown Mode
- Ultra-Small 20-Pin TSSOP Package
- Ground to VDD Reference Input Range
- Output Buffer Amplifiers Swing Rail-to-Rail
- Double-Buffered Registers for Synchronous Updating
- Power-On Reset Sets All Registers to Zero

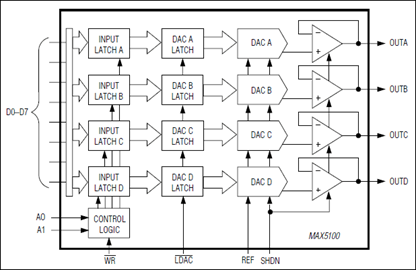

The MAX5100 parallel-input, voltage-output, quad 8-bit digital-to-analog converter (DAC) operates from a single +2.7V to +5.5V supply and comes in a space-saving 20-pin TSSOP package. Internal precision buffers swing Rail-to-Rail, and the reference input range includes both ground and the positive rail. All four DACs share a common reference input.
The MAX5100 provides double-buffered logic inputs: four 8-bit buffer registers followed by four 8-bit DAC registers. This keeps the DAC outputs from changing during the write operation. An asynchronous control pin, active-low LDAC , allows for simultaneous updating of the DAC registers. The MAX5100 features a shutdown mode that reduces current to 1nA, as well as a power-on reset mode that resets all registers to code 00 hex on power-up.
