MAX49921

0 to 70V, High-Precision Current-Sense Amplifier

Show More showmore-icon

Unidirectional Automotive CSA with Most Extended Protection Immunity

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $1.10
Features
  • AEC-Q100 Qualified for Automotive Applications
  • ± 0.5µV (typ) Input Offset Voltage
  • ± 0.05% (typ) Gain Error
  • 0 to +70V Input Voltage Range
  • -42V to +80V Protective Immunity
  • 65kHz, -3dB Bandwidth
  • 140dB DC CMRR
  • Gain Options: 20V/V, 50V/V
  • Rail-to-Rail Output
  • 2mm x 3mm, 8-Pin TDFN Package
  • -40°C to +125°C Automotive Temperature Range
Additional Details
show more Icon

The MAX49921 is high-precision, unidirectional current-sense amplifier (CSA) with an operating input common-mode range from 0 to +70V, though the device is protected against input common-mode voltages down to -42V and up to +80V, thus providing protection against reverse-battery and high-voltage spikes. The MAX49921 is well-suited for current monitoring of inductive loads, such as DC motors and solenoids, where common-mode voltages can become negative due to inductive kickback, reverse-battery conditions, or transient events.

The low input offset of ±0.5µV (typ) and low gain error of ± 0.05% (typ) make this device best suited for high-precision current measurements.

The MAX49921 operates from a supply voltage of +2.7V to +5.5V with a typical quiescent supply at 0.7mA. This device is specified over the full -40°C to +125°C automotive temperature range and is AEC-Q100 qualified. The MAX49921 is offered in a 2mm x 3mm, 8-pin, side-wettable TDFN package with gain options of 20V/V and 50V/V.

Applications

  • Automotive Current Sensing
  • Battery Current Monitoring
  • Current Monitoring of Inductive Loads
  • High- and Low-Side Precision Current Sensing
  • Precision High-Voltage Current Monitoring
  • Solenoid Current Sensing
  • Supercapacitor Charge/Discharge Monitoring
Show More Arrow image
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $1.10
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX49921

Documentation

1
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 10/06/2021
English

MAX49921: 0 to 70V, High-Precision Current-Sense Amplifier Data Sheet (Rev.1)

Open PDF File

redirect
436.00K
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Video

1

Thumbnail Image

Video

2022-10-04

05:59

Introduction to the MAX49921 Bi- and Unidirectional, 0V to 70V Current-Sense Amplifiers

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX49921FATA/VY+ 8-LFCSP_SS-2X2X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX49921FATA/VY+T 8-LFCSP_SS-2X2X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX49921TATA/VY+ 8-LFCSP_SS-2X2X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX49921TATA/VY+T 8-LFCSP_SS-2X2X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Parts Product Life Cycle Description

Current Sense Amplifiers5
MAX9919
popup image
Cart

PRODUCTION

-20V to +75V Input Range, Precision Uni-/Bidirectional, Current-Sense Amplifiers

MAX9920
popup image
Cart

PRODUCTION

-20V to +75V Input Range, Precision Uni-/Bidirectional, Current-Sense Amplifiers

MAX40201
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual-Channel, 0V to 76V Current-Sense Amplifier

MAX40056F
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Bidirectional Current Sense Amplifier with PWM-Rejection

MAX40056U
popup image
Cart

PRODUCTION

Bidirectional Current Sense Amplifier with PWM-Rejection

Evaluation Kits 1

reference details image

MAX49921EVKIT

Evaluation Kit for the MAX49921

zoom

MAX49921EVKIT

Evaluation Kit for the MAX49921

download icon

Download

 print icon

Print
MAX49921EVKIT
Evaluation Kit for the MAX49921

Features and Benefits

  • Precision Real-Time Current Monitoring
  • 0V to +70V Input Common-Mode Range
  • Proven PCB Layout
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

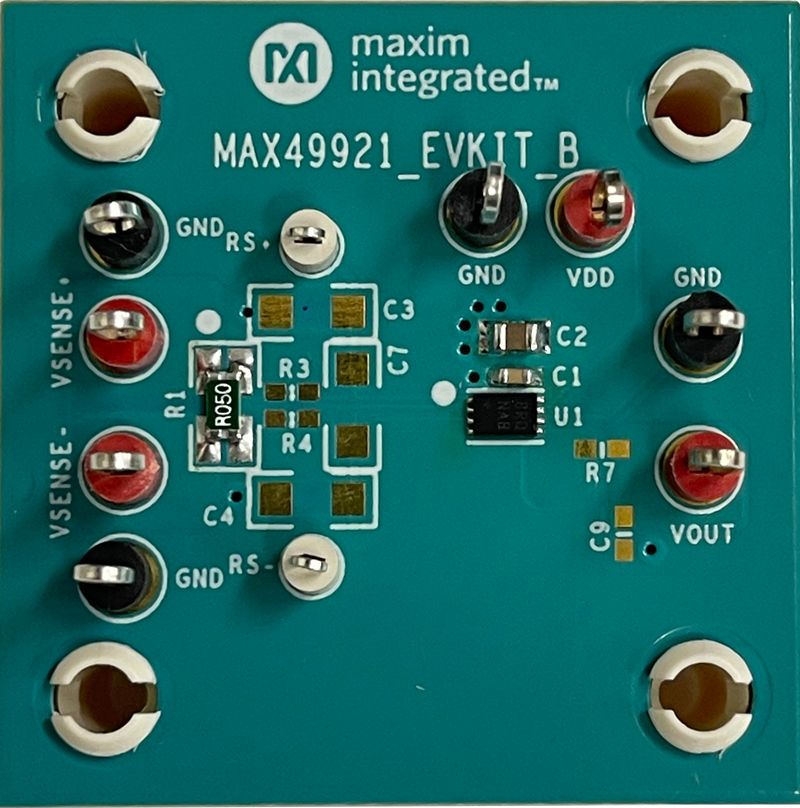

The MAX49921 evaluation kit (EV kit) provides a proven design to evaluate the MAX49921 high precision, high voltage, unidirectional current-sense amplifier. This EV kit demonstrates the MAX49921 in a small, 2mm x 3mm 8-pin TDFN package.

The EV kit PCB comes with a MAX49921FATA/VY+ installed, which is the 50V/V gain version. The other gain option available is the pin-compatible MAX49921TATA/ VY+ (G = 20V/V). Contact the factory for MAX49921TATA/ VY+ availability.

Applications

  • Automotive Current Sensing
  • Battery Current Monitoring
  • Current Monitoring of Inductive Loads
  • High- and Low-Side Precision Current Sensing
  • Precision High-Voltage Current Monitoring
  • Solenoid Current Sensing
  • Super-Capacitor Charge/Discharge Monitoring

Resources

pdf icon

ZIP

MAX49921EVKIT ODB Files - Design Files Download

894.39 K
