MAX4434

PRODUCTION

Single-Supply, 150MHz, 16-Bit Accurate, Ultra-Low Distortion Op Amps

Data Sheet (Rev. 2) Product Selection Table
Viewing:

Overview

  • 16-Bit Accurate Settling in 23ns (MAX4435/MAX4437)
  • 97dB SFDR at 1MHz, 4VP-P Output
  • 2.2nV/ Input Voltage Noise Density
  • 100dB (min) Open-Loop Gain
  • 388V/µs Slew Rate (MAX4435/MAX4437)
  • 65mA High Output Drive
  • Available in Space-Saving Packages
    • 5-Pin SOT23 (MAX4434/MAX4435)
    • 8-Pin µMAX (MAX4436/MAX4437)

The MAX4434/MAX4435 single and MAX4436/MAX4437 dual operational amplifiers feature wide bandwidth, 16-bit settling time in 23ns, and low-noise/low-distortion operation. The MAX4434/MAX4436 are compensated for unity-gain stability and have a small-signal -3dB bandwidth of 150MHz. The MAX4435/MAX4437 are compensated for closed-loop gains of +5 or greater and have a small-signal, -3dB bandwidth of 150MHz.

The MAX4434–MAX4437 op amps require only 15mA of supply current per amplifier while achieving 115dB open-loop gain. Voltage noise density is a low 2.2nV/ and provides 97dB spurious-free dynamic range (SFDR) at 1MHz. These characteristics make these op amps ideal for driving modern, high-speed 14- and 16-bit analog-to-digital converters (ADCs).

These high-speed op amps feature wide-output voltage swings and a high-current output drive up to 65mA. Using a voltage feedback architecture, the MAX4434–MAX4437 meet the requirements of many applications that previously depended on current feedback amplifiers.

The MAX4434/MAX4435 are available in space-saving 5-pin SOT23 packages and the MAX4436/MAX4437 are available in 8-pin µMAX® packages.

Applications

  • High-Performance Receivers
  • High-Speed 14- and 16-Bit ADC Preamplifiers
  • IF/RF Amplifiers
  • Low-Distortion Active Filters
  • Low-Noise Preamplifiers
  • Precision Instrumentation
MAX4434
Single-Supply, 150MHz, 16-Bit Accurate, Ultra-Low Distortion Op Amps

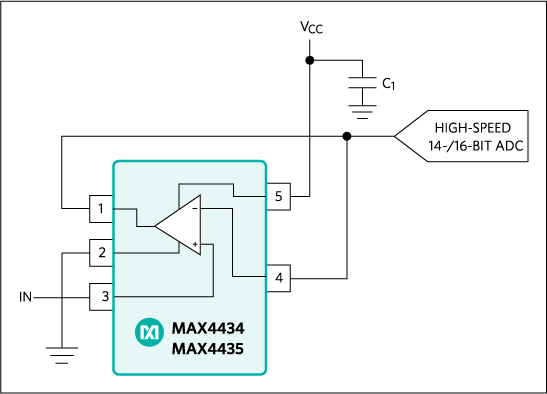

MAX4434, MAX4435, MAX4436, MAX4437: Typical Operating Circuit
