MAX44265
Rail-to-Rail, 200kHz Op Amp with Shutdown in a Tiny, 6-Bump WLP
Save Power and Board Space—Op Amp Consumes Only 4µA and Offers 200kHz BW in 0.4mm Pitch WLP Package
Top
Overview
Features and Benefits
- 200kHz GBW
- Ultra-Low 4µA Supply Current
- Single 1.8V to 5.5V Supply Voltage Range
- Ultra-Low 1pA Input Bias Current
- Rail-to-Rail Input and Output Voltage Ranges
- Low ±200µV Input Offset Voltage
- Low 0.001µA Shutdown Current
- High-Impedance Output During Shutdown
- Unity-Gain Stable

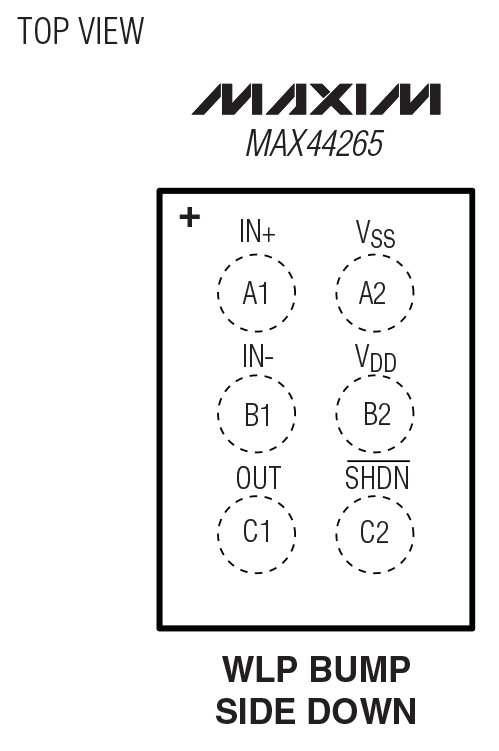

- Available in a Tiny, 0.9mm x 1.3mm, 6-Bump WLP Package
Product Details
The MAX44265 op amp features a maximized ratio of gain bandwidth (GBW) to supply current and is ideal for battery-powered applications such as handsets, tablets, notebooks, and portable medical equipment. This CMOS op amp features an ultra-low input-bias current of 1pA, rail-to-rail input and output, low supply current of 4µA, and operates from a single 1.8V to 5.5V supply. For additional power conservation, the IC also features a low-power shutdown mode that reduces supply current to 1nA and puts the amplifier's outputs in a high-impedance state. This device is unity-gain stable with a 200kHz GBW product.
It is available in a space-saving, 0.9mm x 1.3mm, 6-bump WLP package and is specified over the -40°C to +85°C extended operating temperature range.
Applications
- Battery-Powered Devices
- Cell Phones
- Mobile Accessories
- Tablet/Notebook Computers
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
SPICE Model
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| MAX44265EWT+ | Material Declaration | Reliability Data | Wafer-Level Package 3x2 Bump, Full Array | |
| MAX44265EWT+T | Material Declaration | Reliability Data | Wafer-Level Package 3x2 Bump, Full Array | |
| Wafer Fabrication Data |
