Features and Benefits
- Internal Precision Resistors for Closed-Loop Gains of +2V/V or -1V/V
- High Speed
- 230MHz -3dB Bandwidth
- 90MHz 0.1dB Gain Flatness (MAX4219/MAX4222)
- 600V/µs Slew Rate
- Single 3.3V/5.0V Operation
- Outputs Swing Rail-to-Rail
- Input Common-Mode Range Extends Beyond VEE
- Low Differential Gain/Phase Error: 0.03%/0.04°
- Low Distortion at 5MHz
- -72dBc SFDR
- -71dB Total Harmonic Distortion
- High Output Drive: ±120mA
- Low 5.5mA Supply Current
- 400µA Shutdown Supply Current (MAX4215/MAX4219)
- Space-Saving SOT23, µMAX®, or QSOP Packages
The MAX4214/MAX4215/MAX4217/MAX4219/MAX4222 are precision, closed-loop, gain of +2 (or -1) buffers featuring high slew rates, high output current drive, and low differential gain and phase error. They operate with a single 3.15V to 11V supply or with ±1.575V to ±5.5V dual supplies. The input common-mode voltage range extends 100mV beyond the negative power-supply rail, and the output swings Rail-to-Rail.
These devices require only 5.5mA of quiescent supply current while achieving a 230MHz -3dB bandwidth and a 600V/µs slew rate. In addition, the MAX4215/MAX4219 have a disable feature that reduces the supply current to 400µA per buffer. Input voltage noise is only 10nV per root-Hz , and input current noise is only 1.3pA per root-Hz. This buffer family is ideal for low-power/low-voltage applications requiring wide bandwidth, such as video, communications, and instrumentation systems. For space-sensitive applications, the MAX4214 comes in a miniature 5-pin SOT23 package.
- ADC Interface
- Battery-Powered Applications
- CCD Imaging

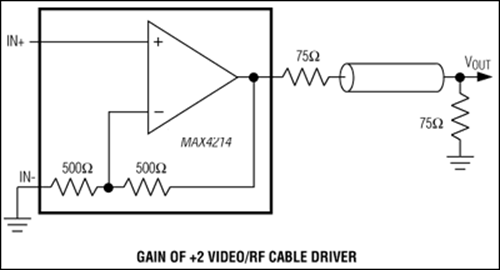

- Video Line Driver
- Video Multiplexing
- Video Routing and Switching Systems
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
