MAX4214
High-Speed, Single-Supply, Gain of 2, Closed-Loop, Rail-to-Rail Buffers with Enable
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Internal Precision Resistors for Closed-Loop Gains of +2V/V or -1V/V
- High Speed
- 230MHz -3dB Bandwidth
- 90MHz 0.1dB Gain Flatness (MAX4219/MAX4222)
- 600V/µs Slew Rate
- Single 3.3V/5.0V Operation
- Outputs Swing Rail-to-Rail
- Input Common-Mode Range Extends Beyond VEE
- Low Differential Gain/Phase Error: 0.03%/0.04°
- Low Distortion at 5MHz
- -72dBc SFDR
- -71dB Total Harmonic Distortion
- High Output Drive: ±120mA
- Low 5.5mA Supply Current
- 400µA Shutdown Supply Current (MAX4215/MAX4219)
- Space-Saving SOT23, µMAX®, or QSOP Packages
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

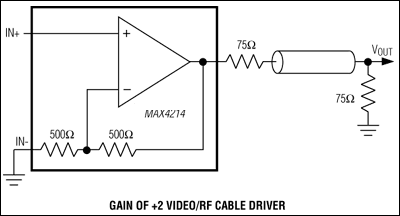

The MAX4214/MAX4215/MAX4217/MAX4219/MAX4222 are precision, closed-loop, gain of +2 (or -1) buffers featuring high slew rates, high output current drive, and low differential gain and phase error. They operate with a single 3.15V to 11V supply or with ±1.575V to ±5.5V dual supplies. The input common-mode voltage range extends 100mV beyond the negative power-supply rail, and the output swings Rail-to-Rail.
These devices require only 5.5mA of quiescent supply current while achieving a 230MHz -3dB bandwidth and a 600V/µs slew rate. In addition, the MAX4215/MAX4219 have a disable feature that reduces the supply current to 400µA per buffer. Input voltage noise is only 10nV per root-Hz , and input current noise is only 1.3pA per root-Hz. This buffer family is ideal for low-power/low-voltage applications requiring wide bandwidth, such as video, communications, and instrumentation systems. For space-sensitive applications, the MAX4214 comes in a miniature 5-pin SOT23 package.
Applications
- ADC Interface
- Battery-Powered Applications
- CCD Imaging
- Video Line Driver
- Video Multiplexing
- Video Routing and Switching Systems
