Overview
Features and Benefits
- 1.2µA Max Quiescent Current per Amplifier
- +2.5V to +10V Single-Supply Range
- 500µV Max Offset Voltage (MAX406A/MAX409A)
- < 0.1pA Typical Input Bias Current
- Output Swings Rail-to-Rail
- Input Voltage Range Includes Negative Rail

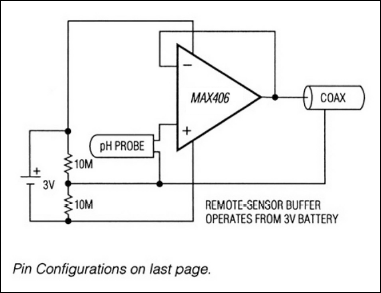

Product Details
The MAX406/MAX407/MAX409/MAX417–MAX419 are single, dual, and quad low-voltage, micropower, precision op amps designed for battery-operated systems. They feature a supply current of less than 1.2µA per amplifier that is relatively constant over the entire supply range, which represents a 15 to 20 times improvement over industry-standard micropower op amps. A unique output stage enables these op amps to operate at ultra-low supply current while maintaining linearity under loaded conditions. In addition, the output is capable of sourcing 1.8mA when powered by a 9V battery.
The common-mode input-voltage range extends from the negative rail to within 1.1V of the positive supply (for the singes, 1.2V for the duals and quads), and the output stage swings rail-to-rail. The entire family is designed to maintain good DC characteristics over the operating temperature range, minimizing the input referred errors.
The MAX406 is a single op amp with two modes of operation: compensated mode and decompensated mode. Floating BW (pin 8) or connecting it to V- internally compensates the amplifier. In this mode, the MAX406 is unity-gain stable with a 5V/ms typical slew rate and an 8kHz gain bandwidth. Connecting BW to V+ puts the MAX406 into decompensated mode with a 20V/ms typical slew rate and a 40kHz gain bandwidth (AVCL ≥ 2V/V).
The dual MAX407 and quad MAX418 are internally compensated to be unity-gain stable. The MAX409/MAX417/MAX419 single/dual/quad op amps feature 150kHz typical bandwidth, 75V/ms slew rate, and stability for gains of 10V/V or greater.
Applications
- Battery-Powered Systems
- Cordless Phones
- Electrometer Amplifiers
- Glucose Meters
- GPS Solutions
- Intrinsically Safe Systems
- IP Camera
- Medical Instruments
- Panel Meters
- pH Meters
- Photodiode Pre-Amps
- Power Meters
- Programmable Logic Controllers (PLCs)
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
