Features and Benefits
- Low-Voltage, Single-Supply Operation (2.7V to 6V)
- Beyond-the-Rails™ Inputs
- No Phase Reversal for Overdriven Inputs
- 30µV Offset Voltage
- Rail-to-Rail Output Swing with 1kΩ Load
- Unity-Gain Stable with 2000pF Load
- 165µA (max) Quiescent Current Per Op Amp
- 500kHz Gain-Bandwidth Product
- High Voltage Gain (115dB)
- High Common-Mode Rejection Ratio (90dB) and Power-Supply Rejection Ratio (100dB)
- Temperature Range (-40°C to +125°C)
The single MAX4091, dual MAX4092, and quad MAX4094 operational amplifiers combine excellent DC accuracy with rail-to-rail operation at the input and output. Since the common-mode voltage extends from VCC to VEE, the devices can operate from either a single supply (2.7V to 6V) or split supplies (±1.35V to ±3V). Each op amp requires less than 130µA of supply current. Even with this low current, the op amps are capable of driving a 1kΩ load, and the input-referred voltage noise is only 12nV/√Hz. In addition, these op amps can drive loads in excess of 2000pF.

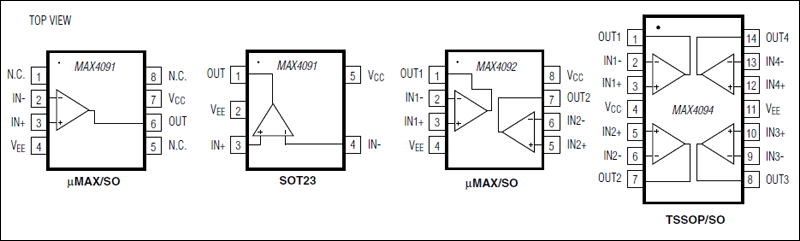

The precision performance of the MAX4091/MAX4092/MAX4094 combined with their wide input and output dynamic range, low-voltage, single-supply operation, and very low supply current, make them an ideal choice for battery-operated equipment, industrial, and data acquisition and control applications. In addition, the MAX4091 is available in space-saving 5-pin SOT23, 8-pin µMAX®, and 8-pin SO packages. The MAX4092 is available in 8-pin µMAX and SO packages, and the MAX4094 is available in 14-pin TSSOP and 14-pin SO packages.
- Battery-Powered Instruments
- Cellular Handsets
- Data Acquisition and Control
- Digital Cameras (DIGICAMs)
- Glucose Meters
- GPS Solutions
- IP Camera
- Low-Voltage Signal Conditioning
- MP3 and Portable Media Players
- Portable Equipment
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
MAX4092 Reliability Data1/12/2023
Tools & Simulations
MAX4092 Companion Parts
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|MAX4092ASA+||Material Declaration||Reliability Data||Small-Outline IC, Narrow (0.15in)|
|MAX4092ASA+T||Material Declaration||Reliability Data||Small-Outline IC, Narrow (0.15in)|
|MAX4092AUA+||Material Declaration||Reliability Data||Micro-MAX, Thin Shrink Small-Outline|
|MAX4092AUA+T||Material Declaration||Reliability Data||Micro-MAX, Thin Shrink Small-Outline|
|Wafer Fabrication Data||MAX4092 Reliability Data|
