Overview
Features and Benefits
- ESD-Protected Video Inputs and Outputs
- ±15kV - Human Body Model
- ±8kV - IEC 1000-4-2 Contact Discharge
- ±15kV - IEC 1000-4-2 Air-Gap Discharge
- 5V Single-Supply Operation
- 0.1µA Low-Power Shutdown Mode (MAX4031E)
- Input Common-Mode Range Extends to Ground
- 2VP-P Large-Signal -3dB BW > 50MHz
- Directly Drives 150Ω Loads
- Low Differential Gain/Phase: 0.2%/0.2°
- -40°C to +85°C Extended Temperature Range
- Compact 8-Pin µMAX and 14-Pin TSSOP Packages

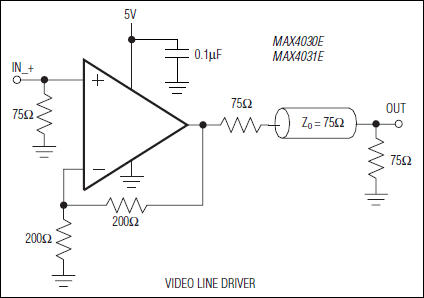

Product Details
The MAX4030E/MAX4031E unity-gain stable op amps combine high-speed performance, rail-to-rail outputs, and ±15kV ESD protection. Targeted for applications where an input or an output is exposed to the outside world, such as video and communications, these devices are compliant with International ESD Standards: ±15kV IEC 1000-4-2 Air-Gap Discharge, ±8kV IEC 1000-4-2 Contact Discharge, and the ±15kV Human Body Model.
The MAX4030E/MAX4031E operate from a single 5V supply and consume only 12mA of quiescent supply current per amplifier while achieving a 144MHz -3dB bandwidth, 20MHz 0.1dB gain flatness, and a 115V/µs slew rate. The MAX4031E provides individual shutdown control for each of the amplifiers.
The dual MAX4030E is available in 8-pin µMAX and SO packages, and the triple MAX4031E is available in 14-pin TSSOP and SO packages. All devices are specified over the -40°C to +85°C extended temperature range.
Applications
- Camcorders
- Digital Still Cameras
- Enhanced Television (ETV)
- High-Definition Television (HDTV)
- Notebooks
- Portable DVD Players
- Projectors
- Security Video Systems
- Set-Top Boxes
- Standard Definition Television (SDTV)
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
Product Recommendations
MAX4030E Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| MAX4030EESA+ | Material Declaration | Reliability Data | Small-Outline IC, Narrow (0.15in) | |
| MAX4030EESA+T | Material Declaration | Reliability Data | Small-Outline IC, Narrow (0.15in) | |
| MAX4030EEUA+ | Material Declaration | Reliability Data | Micro-MAX, Thin Shrink Small-Outline | |
| Wafer Fabrication Data |
