MAX40263
1.8V, 15MHz, Low-Offset, Low-Power, Rail-toRail Dual Op-Amp with Individual Shutdown
A Unique Combination of High-Speed, Precision, and Low-Voltage Operation Perfect for Many Applications!
Top
Overview
Features and Benefits
- Wide Supply Range from 1.8V to 5.5V over the -40°C to +125°C Range
- Low 50μV (Max) Input Offset Voltage with Power-On Autocalibration at +25°C
- 15 MHz Unity-Gain Bandwidth
- Low 12.7nV/√Hz Input Voltage-Noise Density
- 750μA Quiescent Current per Channel
- Rail-to-Rail Inputs and Outputs
- <1.5pA Low Input Bias Current at +25°C
- Power-Saving Shutdown Mode
- Separate Shutdown for Each Channel
- Low 105dB Total Harmonic Distortion
- No Phase Reversal in Overdrive Conditions
Product Details
The MAX40263 is a dual-channel operational amplifier with two channels that can be disabled separately with two individual pins.
The MAX40263 offers a unique combination of high-speed, precision, and low-voltage operation, making it ideally suited for a large number of signal-processing functions such as filtering and amplification of signals in portable and industrial equipment.
The MAX40263's rail-to-rail input/outputs and low noise guarantee maximum dynamic range in demanding applications such as 12- to 14-bit SAR ADC drivers. Unlike traditional rail-to-rail input structures, input crossover distortion is absent due to an optimized input stage with an ultra-quiet charge pump. The input offset voltage is as low as 50μV due to the autocalibration performed during power-up. The device also includes a fast-power-on shutdown mode for further power savings.
The MAX40263 operates from a wide supply range of 1.8V to 5.5V over the -40°C to +125°C temperature range and consumes only 750µA (typ) supply current per channel. It is available in a tiny, 10-pin QFN package.
The MAX40263 is an extension of the MAX44259/60/61/63 and MAX40110/11 families with individual shutdown pins for separate channels.
Applications
- Notebooks
- 3G/4G Handsets
- Portable Medical Instruments
- Battery-Operated Devices
- Analog-to-Digital Converter Buffers
- Transimpedance Amplifiers
- General-Purpose Signal Processing
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

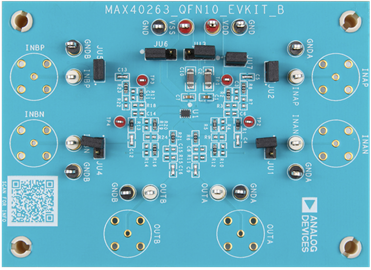

Evaluation Kits (1)
