MAX40111
15MHz, Low-Noise, Precision Operational Amplifiers
Fast Auto-Calibration Provides Accuracy Over Time and Temperature
Top
Overview
Features and Benefits
- Fast Power-up Time of less than 1ms
- Supply Voltage Range: 1.7V to 5.5V
- Low 140µV (Max) Input Offset Voltage with Power-On Auto-Cal at +25°C
- 15MHz GBW
- Low 12.7nV/
Input Voltage-Noise Density - 750µA Quiescent Current
- Rail-to-Rail Inputs and Outputs
- Internal EMI Rejection
- <1pA Low Input Bias Current
- Power-Saving Shutdown Mode
- Available in a Tiny 6-bump WLP and a Thin 6-µDFN Package
Product Details
The MAX40110/MAX40111 offer a unique combination of high speed, precision, low noise, and low-voltage operation, making them ideally suited for a large number of signal processing functions including filtering and amplification of signals in portable and industrial equipment.
The MAX40110/MAX40111s' rail-to-rail input/outputs and low noise guarantee maximum dynamic range in demanding applications such as 12- to 14-bit SAR ADC drivers. Unlike traditional rail-to-rail input structures, input crossover distortion is absent due to an optimized input stage with an ultra-quiet charge pump. The input offset voltage is as low as 30µV due to the auto-calibration performed on power-up. The devices also include a fast-power-on shutdown mode for further power savings.
The MAX40110/MAX40111 operate from a supply range of 1.8V to 5.5V over the -40°C to +125°C extended operating temperature range and consume only 750μA (typ) supply current. The MAX40110 is offered in an ultra-thin 6-µDFN package, and the MAX40111 is available in a tiny 6-bump wafer-level-package (WLP) with a 0.4mm pitch.
The MAX40110/MAX40111 are an extension of the MAX44259/60/61/63 and MAX44290 families with a reduced power up time of less than 1ms.
Applications
- Wearable Devices
- Home Medical (Blood Glucose, Weight Scale, Blood Pressure, EKG)
- Industrial IOT (Pressure, Flow, Level, Temperature, Proximity)
- Optical Sensors
- SAR ADC Driver
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

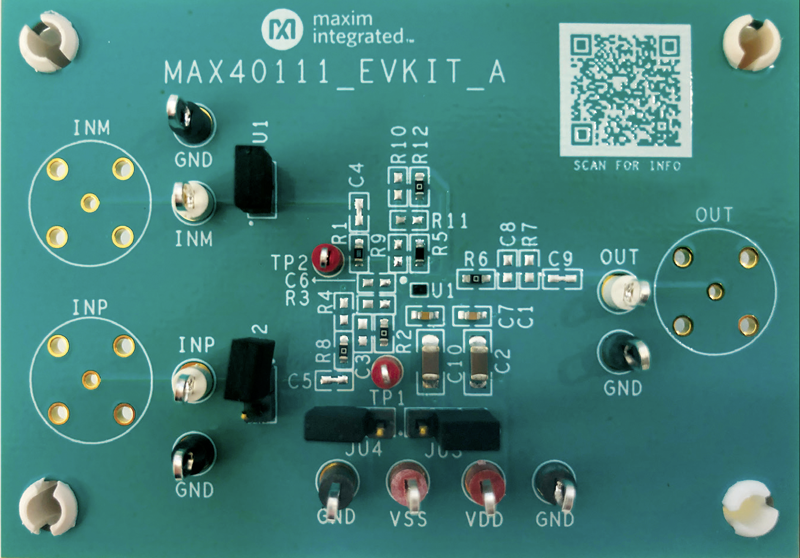

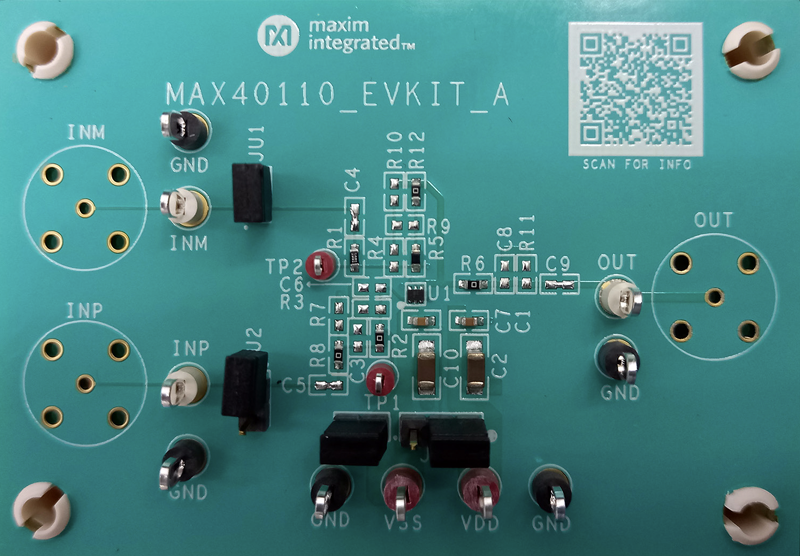

Evaluation Kits (2)
