MAX38800

PRODUCTION

Integrated, Step-Down Switching Regulator with Selectable Applications Configurations

9A Fully Integrated, Highly Efficient Switching Regulator

Data Sheet (Rev. O) Product Selection Table

Part Models: 2
1ku List Price: Starting From $3.46

Viewing:

Overview

High-Efficiency Solution
- Up to 96% Peak
- Up to 95.5% Full Load
- Up to 94% Light-Load Efficiency at 1A with DCM Enabled
Flexible Design Allows Early PCB Definition
- Footprint Compatible with MAX38801 (15A) and MAX38802/MAX38803 (25A)
- Programmable Switching Frequency up to 1MHz
- Programmable Soft-Start and STAT Delay Timings
- Programmable Reference Voltage with External Input Option
- Programmable Positive and Negative OCP Limit
- Supports Current Sourcing and Sinking
Advanced Architecture, Protection and Reporting Guarantees Reliable Designs
- Analog Current or Temperature Reporting
- Differential Remote Sense with Open-Circuit Detection
- Fast Transient Response with Quick-PWM™ Architecture
- Percentage-Based Output Power Good and OVP
- Open-Drain Status Indicator (STAT) Pin
- Input Undervoltage and Overvoltage Lockout
- Adaptive Dead-Time Control
Saves Board Space
- Integrated Boost Switch
- 19-Bump WLCSP (2.2mm x 2.8mm) Footprint
- Operation Using Ceramic Input and Output Capacitors

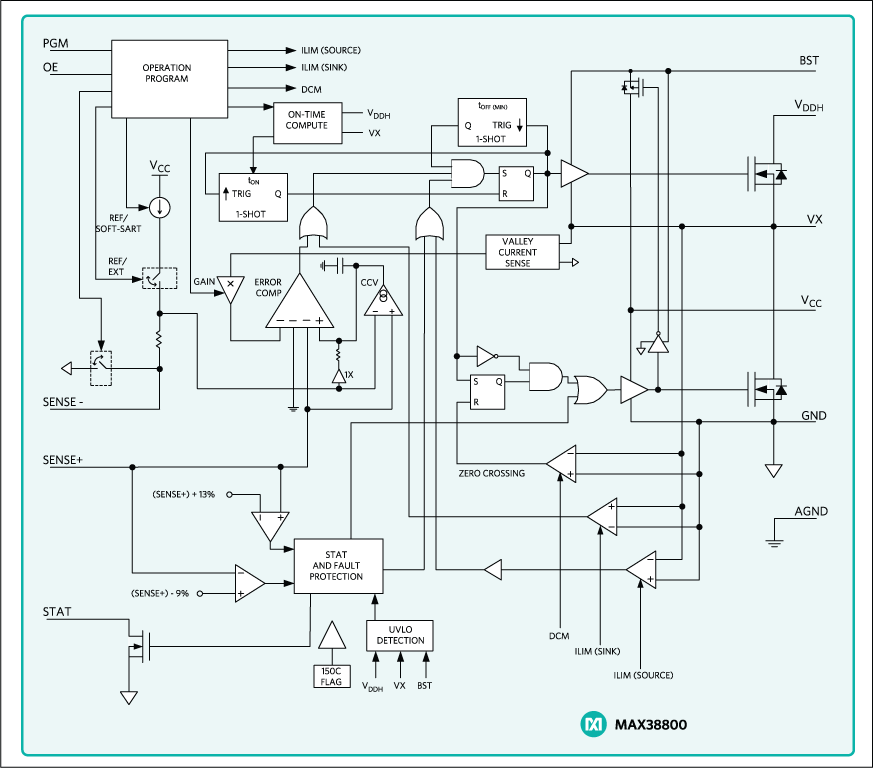

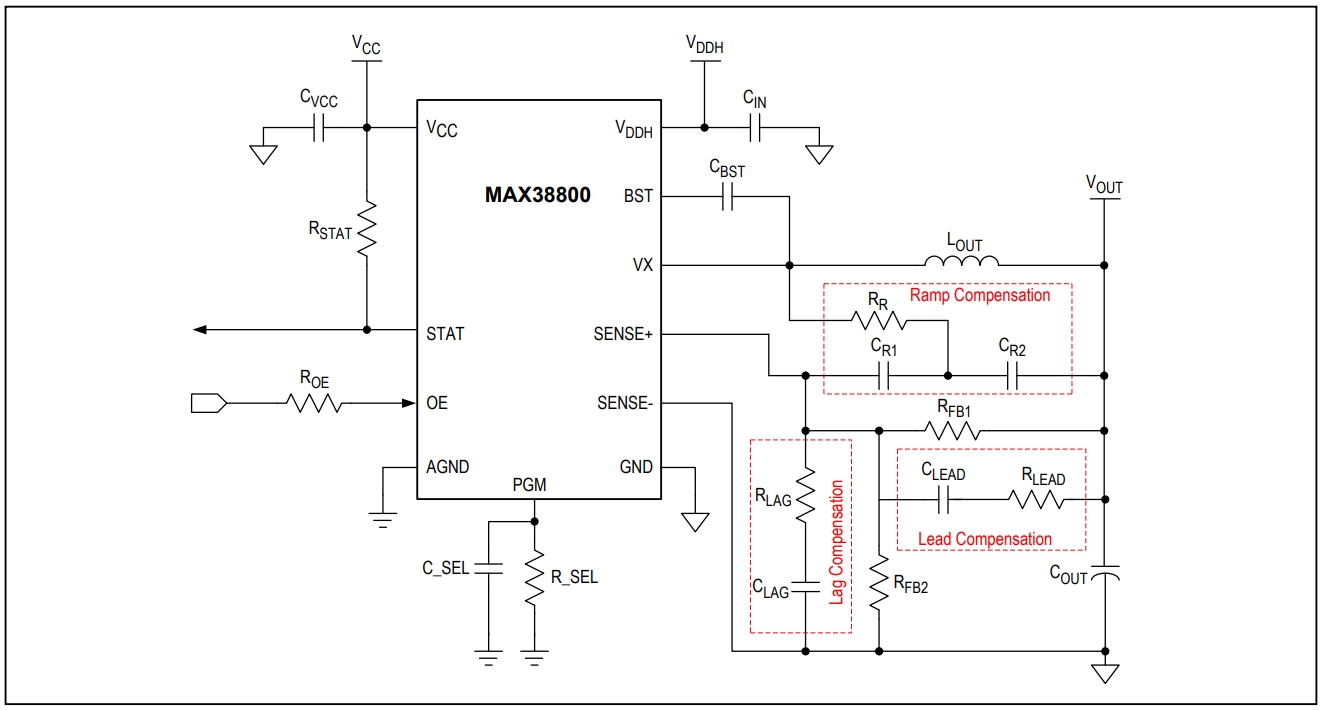

The MAX38800 is a fully integrated, highly efficient switching regulator for applications operating from 6.5V to 14V input supplies that require up to 9A maximum load. This single-chip regulator provides compact high-efficiency power delivery for precision outputs that demand fast transient response.

The device has different programmability options to enable a wide range of configurations. The programmable features include: internal/external reference voltage, output voltage set-point, switching frequency, overcurrent protection level (OCP), and soft-start timing. Discontinuous current mode (DCM) operation can be enabled using pinstrapping to improve light-load efficiency.

The MAX38800 includes multiple protection and measurement features. Positive and negative cycle-by-cycle OCP, short-circuit protection and overtemperature protection (OTP) ensure robust design. Input undervoltage and overvoltage lockout shut down the regulator to prevent damages when the input voltage is out of specification. Regulation is halted in case of an output overvoltage (OVP) event. A status pin indicates that the output voltage is within range and the output voltage is in regulation. The device has an analog output that can be configured to report output current or junction temperature.

The device is available in a 19-bump (2.2mm x 2.8mm) WLCSP package that provides low thermal resistance and minimizes the printed circuit board area.

Applications

DDR Memory: VDDQ, VPP and VTT
GPU Core Supply
I/O and Chipset Supplies
Point-of-Load (POL) applications
Servers/μServers

Part Models: 2
1ku List Price: Starting From $3.46

Documentation

Data Sheet 1

MAX38800: Integrated, Step-Down Switching Regulator with Selectable Applications Configurations Data Sheet (Rev.O) 02/12/2018

Evaluation Design File 1

MAX38800 Gerber File 10/10/2022

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX38800HCS+	19-WLCSP-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX38800HCS+T	WLCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 24, 2020 - 2051 MECHANICAL DATASHEET
		pcn_2051
MAX38800HCS+	PRODUCTION	pcn_2051

This is the most up-to-date revision of the Data Sheet.
