MAX3866
2.5Gbps, +3.3V Combined Transimpedance Limiting Amplifier
Show More
High Performance, Higher Integration
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Input Sensitivities Better than -22dBm (7.8µAp-p)
- Overdrive Capability Better than +1.4dBm (2.5mAp-p)
- Single +3.3V or +5V Supply
- 165mW Power Dissipation (at 3.3V)
- 1.8GHz Analog Input Bandwidth
- Programmable Loss-of-Power Indicator
- 100Ω Differential Output
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

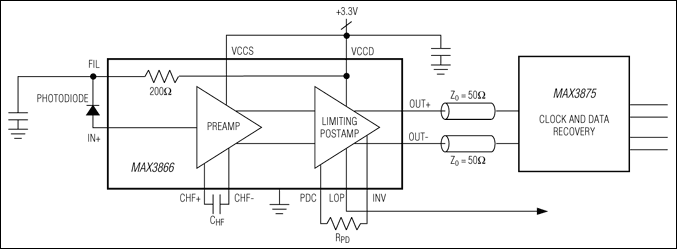

The MAX3866 combined transimpedance preamplifier and limiting postamplifier is intended for application in SDH/SONET systems operating at 2.488Gbps. It operates from a single +3.3V or +5V supply and provides a differential output signal. The differential outputs are each 50Ω reverse terminated (100Ω differential termination) for low-noise and high-speed signal performance.
The small-signal bandwidth and noise performance is specified for a source capacitance of 0.5pF. When the MAX3866 is used with the PIN photodetector, sensitivities better than -22dBm can be achieved. The MAX3866 is equipped with a programmable TTL loss-of-power (LOP) output.
Applications
- 2.488Gbps ATM Receivers
- PIN/Preamplifier Receivers
- Regenerators for SDH/SONET
- SDH/SONET Transmission Systems
