MAX3522B

PRODUCTION

DOCSIS 3.1 Programmable-Gain Amplifier

Dual-Output, High-Performance Upstream Amplifier for DOCSIS 3.1 Applications

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $2.56

Viewing:

Overview

Delivers +68dBmV Output Power While Meeting DOCSIS 3.1 Requirements
Covers 5MHz–204MHz Output Bandwidth
Dual Outputs Eliminates Need for an External RF Switch
Programmable Power Codes Allow Operation at Reduced Power Dissipation
Exceeds Spurious Requirements with Fully Loaded OFDM Allocation at +65dBmV at Modem Output
Two GPIO's Available for SPI-bus Control of External RF Switches
56L 8mm x 8mm x 0.75mm TQFN Package with Exposed Paddle

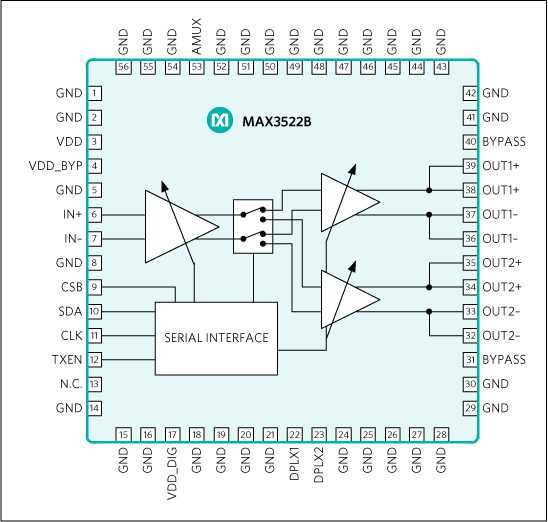

The MAX3522B is a programmable gain amplifier (PGA) designed to exceed the DOCSIS 3.1 Upstream Transmit requirements. By providing dual outputs, the MAX3522B eliminates the need for an external RF switch when selecting between two different upstream bandwidths. The PGA meets the DOCSIS 3.1 spurious limits while transmitting a combined output power of 68dBmV over the RF bandwidth of 5MHz to 204MHz from either output. The gain is controlled in 1dB steps over a 54dB range using a SPI 3-wire interface. The use of Maxim's high-voltage CMOS process enables the device to deliver high dynamic range, while minimizing power dissipation under a +5V supply rail.

The MAX3522B is available in a 56-pin 8mm x 8mm x 0.75mm TQFN package, and operates over temperature range of 0°C to +70°C.

Applications

Cable Modem (CM)
Customer Premises Equipment (CPE)
DOCSIS 3.1 Upstream (D3.1 US)

Part Models: 2
1ku List Price: Starting From $2.56

Documentation

Data Sheet 1

MAX3522B: DOCSIS 3.1 Programmable-Gain Amplifier Data Sheet (Rev.0) 11/15/2019

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX3522BCTN+	56-TQFN-8X8X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX3522BCTN+T	56-TQFN-8X8X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

Evaluation Kit for the MAX3522B

Buy Now View Details

Features and Benefits

Easy Evaluation of the MAX3522B
50Ω SMA Connectors
All Critical Peripheral Components Included
Reference Design Ready Layout
Fully Assembled and Tested
PC Control Software

Product Details

The MAX3522B evaluation kit (EV kit) simplifies the testing and evaluation of the MAX3522B DOCSIS 3.1 upstream amplifier. The EV kit is fully assembled and tested at the factory. Standard 50Ω SMA connectors are included on the EV kit for the inputs and outputs to allow quick and easy evaluation on the test bench.

This document provides a list of equipment required to evaluate the device, a straightforward test procedure to verify functionality, a description of the EV kit circuit, the circuit schematic, a list of components for the EV kit, and artwork for each layer of the PCB.

Applications

Cable Modem (CM)
Customer Premises Equipment (CPE)
DOCSIS 3.1 Upstream (D3.1 US)

Resources

MAX3522BEVKIT ODB File - Design Files
