MAX32663A: Ultra-Low Power ECG Biometric Sensor Hub Data Sheet (Rev. 0)1/4/2021159K
Features and Benefits
- Three Different Versions
- Version FS (Full HeartKey Suite)
- Heart Rate, Heart Rate Variability, Stress Level Index, Energy Expenditure and User Identification
- Version W (Health and Wellness)
- Heart Rate, Heart Rate Variability, Stress Level Index and Energy Expenditure
- Version UI (User Identification)
- User Identification
- Version FS (Full HeartKey Suite)
- Biometric Sensor Hub Enables Faster Time to Market
- Removes Software Licensing Burden
- One Slave I2C for Communication with a Host Microcontroller
- One Master I2C for Communication with Sensors
- Manages the Ultra-Low Power-Hardware for Increased Efficiency
- First-In First-Out (FIFO) Provides Minimal Host Interaction
- Easily Integrate with Maxim’s Low-Power ECG AFEs (e.g., MAX30003)
- Tiny Form Factors for Footprint-Constrained Designs
- 3mm x 3mm TQFN
- 1.6mm x 1.6mm WLP

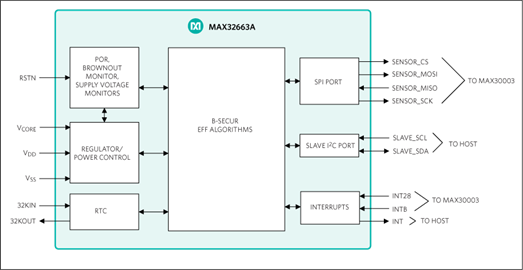

The MAX32663A is a low-power sensor hub with embedded firmware and HeartKey® ECG algorithms from B-Secur for wearable and medical devices. It enables seamless communication with Maxim’s low-power ECG sensors (e.g., the MAX30003), providing a complete solution that delivers health information and insights to an application.
Time to market is faster with this proven ECG solution that offers low power consumption, accurate and robust health data, and a tiny form factor, all while removing the licensing burden from the application.
- Mobile Devices
- Portable Medical
- Wearable Fitness
- Wearable Medical
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The MAX30003WING2 evaluation kit demonstrates the use of the MAX32663A MCU as an ECG sensor hub. The MAX32663A runs advanced ECG algorithms provided by B-Secur, which transforms raw ECG data collected from the MAX30003 analog front end (AFE) into simple, high-level information which is then communicated to the MAX32620FTHR host processor through the I2C interface. The EV kit is accompanied by PC software, which allows easy evaluation of the ECG algorithms.
The kit includes the following items:
- MAX30003WING2# Circuit Board
- MAX326325PICO JTAG Debugger/Programmer
- MAX32620FTHR Feather Board
- Micro USB Cables
- SWD Cable
- Fitness Monitors
- Industrial Sensors
- Optical Modules: QSFP-DD, QSFP, 400G
- Portable Medical Devices
- Sports Watches
- Wearable Medical Patches
Features & Benefits
- Integrates B-Secur ECG Firmware
- Evaluates MAX32663A Sensor Hub and the MAX30003 ECG AFE
- Measures Heart Rate, Heart Rate Variability, and Stress
- User Identification through ECG Analysis
- PCB ECG Electrodes
- Connector for External ECG Electrodes
- Adafruit® Feather-Compatible Host Processor Socket with MAX32620FTHR Board Installed
