Overview
Features and Benefits
- Low On-Resistance, 35Ω max (16Ω typical)
- RON Matching Between Channels < 2Ω
- RON Flatness < 4Ω
- Guaranteed Charge Injection < 5pC
- Bipolar Supply Operation (±3V to ±8V)
- Low Power Consumption, < 1.25mW
- Low Leakage Current Over Temperature, < 2.5nA at +85°C
- Fast Switching, tON < 150ns, tOFF < 100ns
- Guaranteed Break-Before-Make (MAX322 only)
Product Details

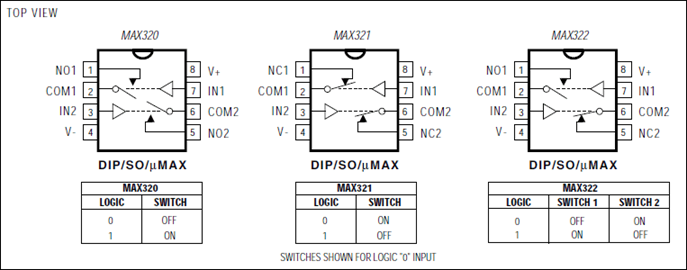

The MAX320/MAX321/MAX322 are precision, dual, SPST analog switches designed to operate from ±3V to ±8V dual supplies. The MAX320 has two normally open (NO) switches and the MAX321 has two normally closed (NC) switches. The MAX322 has one NO and one NC switch. Low power consumption (1.25mW) makes these parts ideal for battery-powered equipment. They offer low leakage currents (100pA max) and fast switching speeds (tON = 150ns max, tOFF = 100ns max).
The MAX320 series, powered from ±5V supplies, offers 35Ω max on-resistance (RON), 2Ω max matching between channels, and 4Ω max RON flatness.
These switches also offer 5pC max charge injection and a minimum of 2000V ESD protection per Method 3015.7. For equivalent devices specified for single-supply operation, see the MAX323/MAX324/MAX325 data sheet. For quad versions of these switches, see the MAX391/MAX392/MAX393 data sheet.
Applications
- ±5V DACs and ADCs
- Audio and Video Switching
- Battery-Powered Applications
- Communication Systems
- Guidance and Control Systems
- Heads-Up Displays
- Military Radios
- PBX, PABX
- Sample-and-Hold Circuits
- Test Equipment
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
