MAX31856

Precision Thermocouple to Digital Converter with Linearization

Show More showmore-icon

Simplifies Thermocouple Designs with Integrated Automatic Cold Junction Compensation and Linearization Correction

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.0)
Documentation View All Documentation
IBIS Model MAX31856 IBIS Model Download 206.71KB
Part Models 2
1ku List Price Starting From $4.98
Features
  • Provides High-Accuracy Thermocouple Temperature Readings
    • Includes Automatic Linearization Correction for 8 Thermocouple Types
    • ±0.15% (max, -20°C to +85°C) Thermocouple Full-Scale and Linearity Error
    • 19-Bit, 0.0078125°C Thermocouple Temperature Resolution
  • Internal Cold-Junction Compensation Minimizes System Components
    • ±0.7°C (max, -20°C to +85°C) Cold-Junction Accuracy
  • ±45V Input Protection Provides Robust System Performance
  • Simplifies System Fault Management and Troubleshooting
    • Detects Open Thermocouples
    • Over- and Undertemperature Fault Detection
  • 50Hz/60Hz Noise Rejection Filtering Improves System Performance
  • 14-Pin TSSOP Package
Additional Details
show more Icon

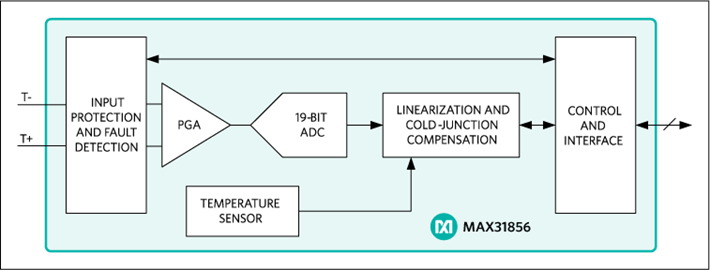

The MAX31856 performs cold-junction compensation and digitizes the signal from any type of thermocouple. The output data is formatted in degrees Celsius. This converter resolves temperatures to 0.0078125°C, allows readings as high as +1800°C and as low as -210°C (depending on thermocouple type), and exhibits thermocouple voltage measurement accuracy of ±0.15%. The thermocouple inputs are protected against overvoltage conditions up to ±45V.

A lookup table (LUT) stores linearity correction data for several types of thermocouples (K, J, N, R, S, T, E, and B). Line frequency filtering of 50Hz and 60Hz is included, as is thermocouple fault detection. A SPI-compatible interface allows selection of thermocouple type and setup of the conversion and fault detection processes.

Applications

  • Industrial Equipment
  • Industrial Ovens, Furnaces, and Environmental Chambers
  • Temperature Controllers
Show More Arrow image
file View Data Sheet (Rev.0)
Documentation View All Documentation
IBIS Model MAX31856 IBIS Model Download 206.71KB
Part Models 2
1ku List Price Starting From $4.98
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX31856

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • Design Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

3

PDF Vector

PDF

UPDATED 04/06/2015
English

MAX31856: Precision Thermocouple to Digital Converter with Linearization Data Sheet (Rev.0)

Open PDF File

redirect
660.00K
download

Download PDF

PDF Vector

PDF

UPDATED 01/14/2016
Chinese

MAX31856: 高精度热电偶至数字输出转换器，带线性度补偿 Data Sheet (Rev.0)

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 05/16/2016
Japanese

MAX31856: 高精度熱電対-デジタルコンバータ、線形化内蔵 Data Sheet (Rev.0)

Open PDF File

redirect
645.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 01/12/2023
English
MAX31856 Reliability Data redirect icon

31.98K

download

Download PDF

Design Note

1

PDF Vector

HTML

UPDATED 03/26/2018
English
The Basics of Thermocouples redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Video

1

Thumbnail Image

Video

2022-10-04

04:12

How to Measure Temperature with a Thermocouple Using the MAX31856

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX31856MUD+ Thin Shrink Small-Outline Package external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX31856MUD+T Thin Shrink Small-Outline Package external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 11, 2018

- 1754N

ASSEMBLY

MAX31856MUD+

PRODUCTION

MAX31856MUD+T

PRODUCTION

pdf

pcn_1754n

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 11, 2018

- 1754N

arrow down

ASSEMBLY

MAX31856MUD+

PRODUCTION

MAX31856MUD+T

PRODUCTION

pdf

pcn_1754n

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Temperature Sensors1
MAX31855
popup image
Cart

PRODUCTION

Cold-Junction Compensated Thermocouple-to-Digital Converter

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 1

reference details image

MAX31856EVSYS

Evaluation System for MAX31856

zoom

MAX31856EVSYS

Evaluation System for MAX31856

download icon

Download

 print icon

Print
MAX31856EVSYS
Evaluation System for MAX31856

Features and Benefits

  • Easy Evaluation of the MAX31856
  • Includes K-Type Thermocouple
  • USB Power and Interface with USB2PMB1 Board
  • Windows XP®, Windows® 7, Windows 8.1-Compatible Software
  • 12-Pin Pmod-Compatible Connector (SPI)
  • Fully Assembled and Tested
  • Proven PCB Layout
  • RoHS Compliant
Buy Now View Details

Product Detail

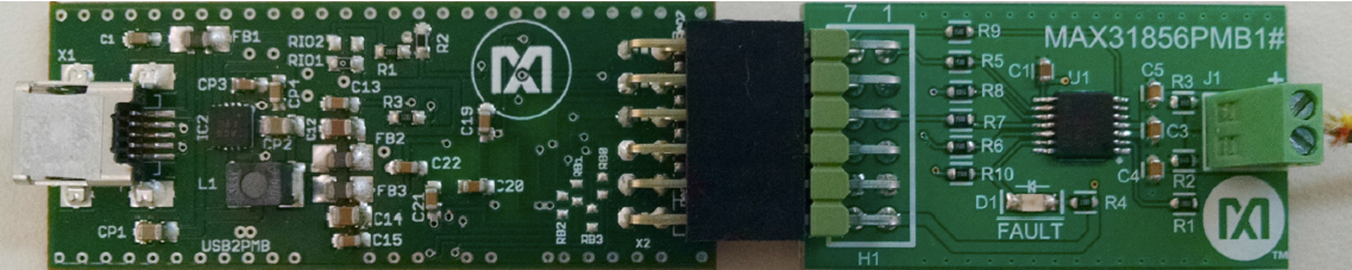

The MAX31856 evaluation system (EV system) provides the hardware and software necessary to evaluate the MAX31856 thermocouple-to-digital converter.

The EV system includes the MAX31856PMB1 peripheral module with a Pmod™-compatible connector for SPI communication. The system also includes the USB2PMB1 adapter board for communication with the software and a K-type thermocouple for temperature sensing. Other thermocouple types (J, N, R, S, T, E, and B) can be evaluated with a user-supplied thermocouple.

Applications

  • Industrial Equipment
  • Industrial Ovens, Furnaces, and Environmental Chambers
  • Temperature Controllers

Resources

pdf icon

ZIP

MAX31856PMB1 Gerber File - Design Files Download

240.05K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

MAX31856EVSYS

Evaluation System for MAX31856
