MAX31825

1-Wire® Temperature Sensor with ±1ºC Accuracy

Show More showmore-icon

Industry-Leading 1-Wire Temperature Sensor with Address and Alarm Pin

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $1.93
Features
  • 1-Wire Interface Requires Only One Port Pin for Communication
  • Unique 64-bit Serial Code Stored in an On-Board ROM
  • External Resistor Selects Address for Location Identification
  • Can Be Powered From Data Line
  • Power Supply Range is 1.6V to 3.6V (External Power), 2.3V to 3.6V (Parasite Power)
  • Measures Temperatures from -45°C to +145°C
  • Better Than ±1°C Accuracy from 0°C to +70°C
  • Better Than ±1.75°C Accuracy from -45°C to +145°C
  • Alarm Output for Detection of Temperature Faults
  • Temperature Resolution is Selectable from 8 to 12 Bits
  • Converts Temperature to 10-bit Digital Word in 80ms (max)
  • User-Definable Alarm Settings
  • 4kV HBM ESD Protection
  • Available in a 6-Bump WLP
Additional Details
show more Icon

The MAX31825 temperature sensor provides 8-bit to 12-bit Celsius temperature measurements with better than ±1°C accuracy from 0°C to +70°C and ±1.75°C from -45°C to +145°C.

The sensor communicates over a 1-Wire® bus that, by definition, requires only one data line (and ground) for communication with a microcontroller. In addition, the sensor can derive power directly from the data line ("parasite power"), eliminating the need for an external power supply.

Each sensor has a unique 64-bit serial code, which allows multiple MAX31825 ICs to reside on the same 1-Wire bus. In addition, it includes two address input pins that, using an external resistor and pin-strapping, allow one of 64 different addresses to be selected to identify each sensor's physical location. Therefore, it is simple to use one microprocessor to control many devices distributed over a large area.

The MAX31825 is available in a 6-bump WLP package. The power supply voltage range is from 1.6V to 3.6V for external power supplies, and from 2.3V to 3.6V for parasite power. The operating temperature range is from -45°C to +145°C.

Applications

  • Communications Equipment
  • Consumer Equipment
  • Data Center Equipment
  • Industrial Equipment
Part Models 2
1ku List Price Starting From $1.93

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX31825ANT+
  • HTML
  • HTML
MAX31825ANT+T
  • HTML
  • HTML
Evaluation Kit

Evaluation Kits 2

reference details image

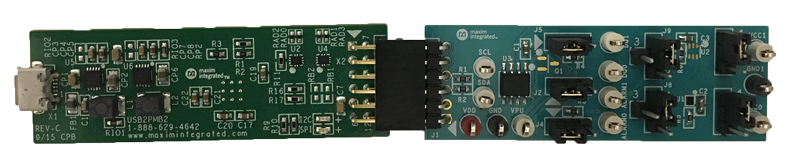

MAX31825EVSYS1

Evaluation System for the MAX31825

zoom

MAX31825EVSYS1

Evaluation System for the MAX31825

Evaluation System for the MAX31825

Features and Benefits

  • On-Board I2C to 1-Wire Converter (DS2482)
  • Proven PCB Layout
  • Fully Assembled and Tested
  • Windows XP, Windows 7/8/8.1/10-CompatibleSoftware

Product Detail

The MAX31825 evaluation system (EV system) demonstrates the MAX31825 1-Wire® temperature sensor with hardware-selectable address and alarm. The MAX31825 EV system includes the MAX31825 evaluation kit (EV kit) and the USB2PMB2 module. Windows® 7/8/8.1/10-compatible software provides a user-friendly interface that demonstrates the features of the MAX31825.

The MAX31825 EV kit contains an on-board DS2482 I2C to 1-Wire converter and comes with the 6-pin WLP MAX31825ANT+ installed.

Applications

  • Communications Equipment
  • Consumer Equipment
  • Data Center Equipment
  • Industrial Equipment
reference details image

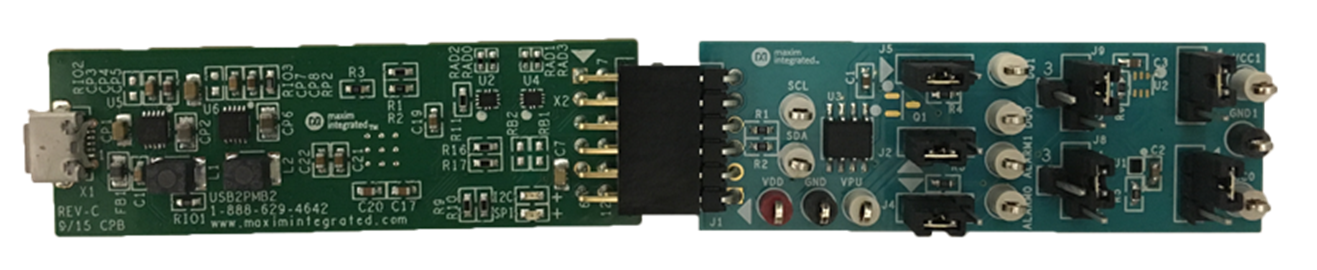

MAX31825EVKIT

Evaluation System for the MAX31825

zoom

MAX31825EVKIT

Evaluation System for the MAX31825

Evaluation System for the MAX31825

Features and Benefits

  • On-Board I2C to 1-Wire Converter (DS2482)
  • Proven PCB Layout
  • Fully Assembled and Tested
  • Windows XP, Windows 7/8/8.1/10-CompatibleSoftware

Product Detail

The MAX31825 evaluation system (EV system) demonstrates the MAX31825 1-Wire® temperature sensor with hardware-selectable address and alarm. The MAX31825 EV system includes the MAX31825 evaluation kit (EV kit) and the USB2PMB2 module. Windows® 7/8/8.1/10-compatible software provides a user-friendly interface that demonstrates the features of the MAX31825.

The MAX31825 EV kit contains an on-board DS2482 I2C to 1-Wire converter and comes with the 6-pin WLP MAX31825ANT+ installed.

Applications

  • Communications Equipment
  • Consumer Equipment
  • Data Center Equipment
  • Industrial Equipment
