MAX30207

±0.1°C Accurate, 1-Wire® Digital Temperature Sensor

Show More showmore-icon

The MAX30207 is a Low-Power, High-Accuracy Digital Contact Temperature Sensor with a 1-Wire Interface

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 8
1ku List Price Starting From $1.56
Features
  • High Accuracy and Precision
    • ±0.1°C Accuracy from +30°C to +50°C
    • ±0.3°C Accuracy from 0°C to +70°C
  • Long Battery Life
    • 1.7V to 3.6V Operating Voltage
    • 67µA Operating Current During Measurement
    • 0.6µA Average Current Measuring at 0.25sps
    • 16ms Integration Time
  • Small Size and Innovative Package
    • Tiny 2mm x 2mm LGA Package
    • Up to 32 Unique Physical Location Addresses
  • Safety and Compliance
    • Unique ROM IDs Allow Device to be NIST Traceable
    • High and Low Temperature Alarms
  • Simple and Robust Digital Interface
    • 1-Wire® Interface
    • Cyclic Redundancy Check (CRC)
    • Multidrop Capability
    • IEC 61000-4-2 ESD: ±15kV Air Gap, ±6kV Contact
Additional Details
show more Icon

The MAX30207 is a low-power, high-accuracy digital temperature sensor with ±0.1°C accuracy from +30°C to +50°C and ±0.3°C accuracy from 0°C to +70°C. It provides a 16-bit resolution (0.005°C).

The 2mm x 2mm x 0.75mm package design has extremely low thermal mass and can be mounted on a flex PCB with only two conducting traces, allowing for minimal thermal conduction to the system PCB and accurate temperature measurements.

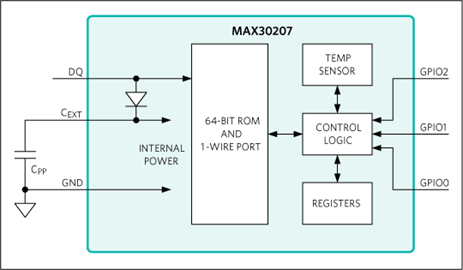

Data is transferred serially through the 1-Wire® protocol, which requires only one data line and a ground reference for communication. Power to the device is also provided using the same data line used for communication using parasite power circuitry inside the device. Each MAX30207 has its own unique 64-bit registration number factory programmed into the chip. This unique 64-bit registration number acts as the node address in a multidrop 1-Wire® network. In multidrop networks, optional GPIO pins may be used as address bits to identify each device's physical location.

Applications

  • Internet of Things (IoT) Sensors
  • Medical Thermometers
  • Wearable Body Temperature Monitors
Part Models 8
1ku List Price Starting From $1.56

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX30207ACLB+
  • HTML
  • HTML
MAX30207ACLB+T
  • HTML
  • HTML
MAX30207BCLB+
  • HTML
  • HTML
MAX30207BCLB+T
  • HTML
  • HTML
MAX30207CCLB+
  • HTML
  • HTML
MAX30207CCLB+T
  • HTML
  • HTML
MAX30207CLB+
  • HTML
  • HTML
MAX30207CLB+T
  • HTML
  • HTML
Evaluation Kit

Evaluation Kits 1

reference details image

MAX30207EVSYS

Evaluation System for the MAX30207

zoom

MAX30207EVSYS

Evaluation System for the MAX30207

Evaluation System for the MAX30207

Features and Benefits

  • Flexible PCB Design
    • Low Thermal Mass for Fast Response Time
    • Sense Temperature away from Extra Circuitry
  • Easy to Reach Test Points
  • Fully Assembled and Tested
  • Windows® 10-Compatible Software

Product Detail

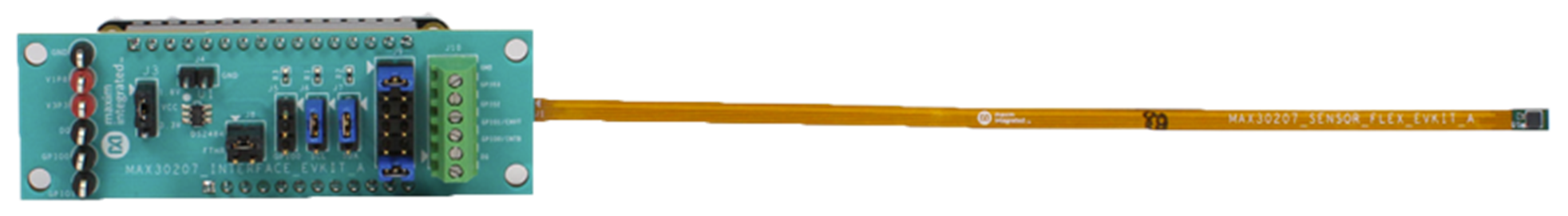

The MAX30207 evaluation (EV) system provides a single platform to evaluate the MAX30207, a +/-0.1°C accurate temperature sensor. The EV system consists of two boards connected through headers, a MAX32630FTHR microcontroller board, and the MAX30207_INTERFACE_ EVKIT board. The EV system also includes a MAX30207_ SENSOR_FLEX_EVKIT flex module that holds the MAX30207 IC. The MAX32630FTHR contains the firmware necessary to use the PC GUI program and provides power to the MAX30207 interface board. The MAX30207 interface board ships with jumpers preinstalled to allow quick evaluation of the MAX30207.

Applications

  • Internet of Things (IoT) Sensors
  • Medical Thermometers
  • Wearable Body Temperature Monitors
