MAX25630

PRODUCTION

4x24 Automotive LED Matrix Driver with UART Interface

Flexible and Fast—Enables Matrix/Pixel Automotive Lighting up to 72mA

Data Sheet (Rev. 0) Product Selection Table

Part Models: 4
1ku List Price: price unavailable

Viewing:

Overview

Flexible Configuration
- Programmable Multiplex Ratio Between 4:1 and 1:1
- Integrated Column Drivers
- Programmable Dither for Enhanced Resolution
- Optional Individual Programmable Delays
- Optional Pseudorandom Spread-Spectrum on Each Output
24 Row Drivers
- Up to 72mA Peak Output Current
- Very Narrow Minimum Current Pulse for Maximum Dimming Ratio
- Optional Ghosting Elimination
ASIL B Compliant
- Shorted or Open LEDs
- Programmable V_LED Overvoltage Detection
- SNK_ to SNK_ Shorts
- Shorted SNK_ or SRC_ to GND
- ISET Out of Range
- Internal Clock Out-of-Range Detection
- Bandgap Reference Out of Range
- CRC on Internal Memory Contents
- Thermal Warning/Shutdown
FB Output to Control External DC-DC Converter
UART Interface
V_SYNC Synchronization Input
48-Lead TQFN and TSSOP Packages
AEC-Q100 Grade 1

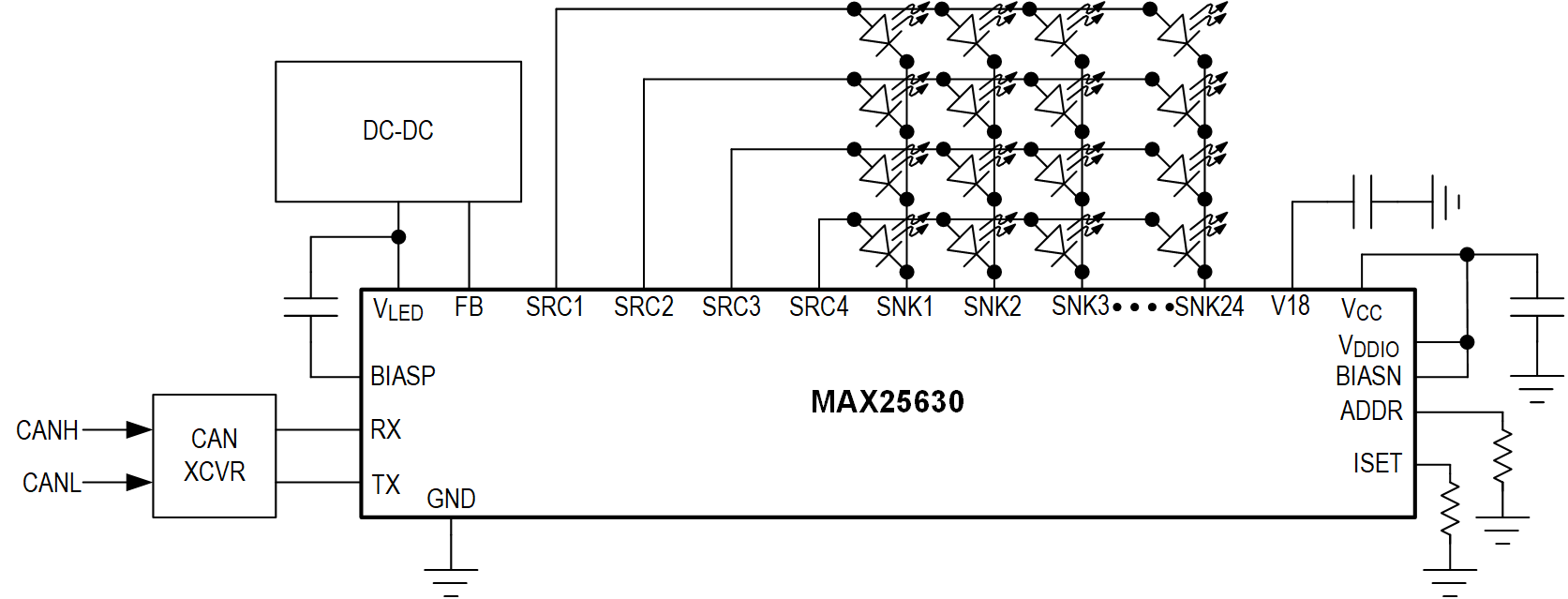

The MAX25630 is a 4x24-channel modular matrix driver. The integrated current outputs can sink up to 72mA LED current each. The source drive pins provide current to the columns of the matrix on a multiplexed basis. Device power comes from an external 3.3V or 5V supply, while the LED current-sink outputs can operate at up to 14V.

A feedback output pin (FB) is provided to control an external DC-DC converter so that voltage headroom can be optimized and the overall system power dissipation reduced.

The device is highly flexible due to its programmability using the UART interface. The interface allows the control of up to 16 devices in a star configuration. Among the programmable parameters are the LED current, individual PWM settings, and multiplex ratio.

The MAX25630 is available in TQFN and TSSOP packages and operates in the -40°C to +125°C temperature range.

Applications

Welcome/Goodbye Lighting
Exterior Rear Lighting
Interior Lighting

Part Models: 4
1ku List Price: price unavailable

Documentation

Data Sheet 1

MAX25630: 4x24 Automotive LED Matrix Driver with UART Interface Data Sheet (Rev.0) 09/10/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX25630ATM/V+	48-LFCSP-7X7X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX25630ATM/V+T	48-LFCSP-7X7X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX25630AUM/V+	48-TSSOP_6.1_EP-6.1_MM	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX25630AUM/V+T	48-TSSOP_6.1_EP-6.1_MM	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
MAX25500	RECOMMENDED FOR NEW DESIGNS	4 × 24 Automotive LED Matrix Driver
MAX25503	RECOMMENDED FOR NEW DESIGNS	4 x 24 Automotive LED Matrix Driver
MAX25505	RECOMMENDED FOR NEW DESIGNS	4 x 24 Automotive LED Matrix Drivers with ASIL Features
