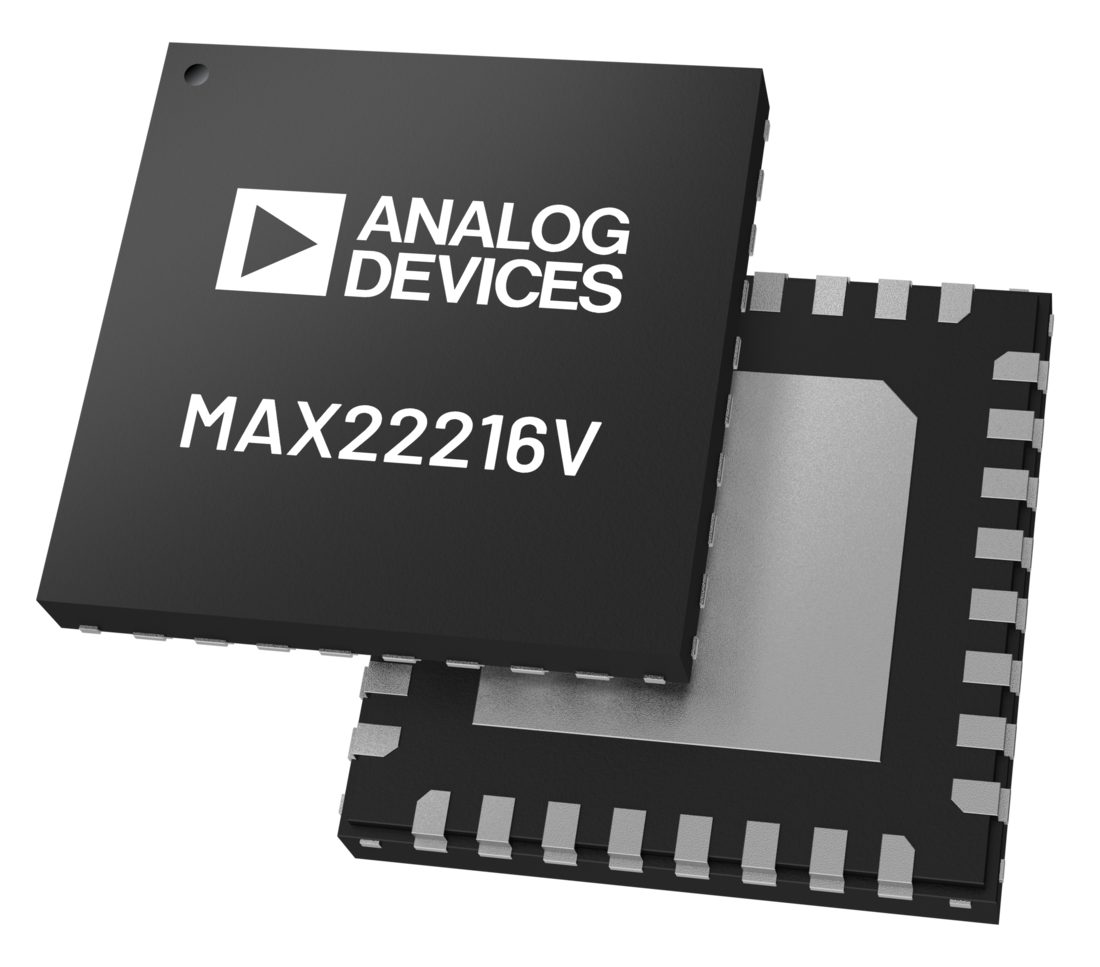

MAX22216V

AEC-Q100 Certified Quad Smart Serial- Controlled Solenoid and Motor Driver with Advanced Diagnostic

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Four Serial Controlled 36V Half Bridges
- 1.7A DC (T_A = 25°C) and 3.2A Full-Scale Current Capability
AEC-Q100 Grade 1 Qualified
Low R_ON for High Efficiency
High Flexibility:
- Independent Channel Setting
- High-Side/Low-Side/Bridge-Tied Load Configuration/Parallel Mode Supported
Advanced Control Methods
- Voltage/Current Drive Regulation
- 2-Levels Sequencer for Power Saving
- DC-Motor Drive with Current Limiter
- Dithering Function
- Ramp up/down Control
- Demagnetization Voltage Control
- Integrated Current Sense

Diagnostic Functions:
- Reaction and Travel Time Measurement
- Detection of Plunger Movements
- Open-Load Detection
- Inductance Measurement
- Digital Current Sense Monitor
Full Set of Protections
- Overcurrent Protection
- Thermal Protections
- Undervoltage Lockout

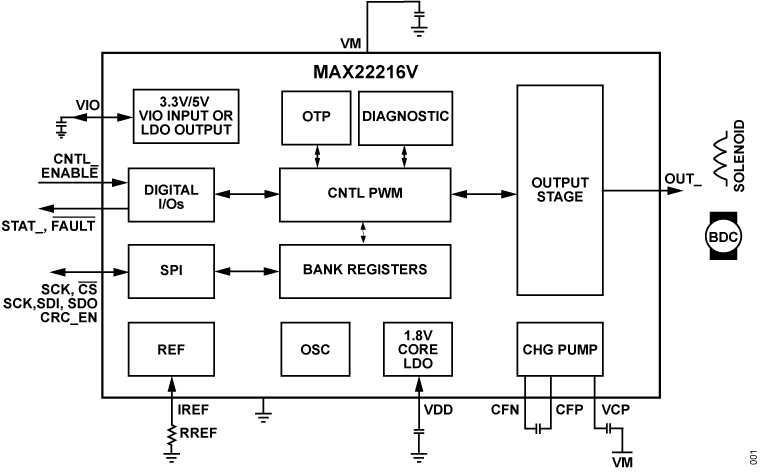

The MAX22216V is an AEC-Q100 qualified driver. It integrates four programmable 36V half-bridges. It is primarily intended to drive inductive loads such as on-off solenoid valves, DC motors, proportional valves, bistable valves, and relays. The MAX22216V is capable of up to 3.2A_FS per half-bridge and operates from -40°C to +125°C ambient temperature.

The MAX22216V half-bridges support two different use cases. In the first case, configuration settings can be entered through a serial peripheral interface (SPI) and can be changed at any time. Alternatively, settings can be stored in one-time programmable (OTP) registers, which are loaded at power-up. This enables standalone operations. Registers are user-programmable. The OTP writing procedure must be executed in a factory under well-controlled temperature and voltage conditions.

Please see the Data Sheet for the full description.

The MAX22216V evaluation board is the MAX22216EVKIT. The MAX22216EVKIT populates the MAX22216 for evaluation purposes.

APPLICATIONS

ECU/VCU
Suspension Control
Door Module
HVAC Control
HV Contactors
Solenoid On-Off Valves and Relay
Switching Driver with Real-Time Current Measurement

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

MAX22216V: AEC-Q100 Certified Quad Smart Serial- Controlled Solenoid and Motor Driver with Advanced Diagnostic Data Sheet (Rev.0) 10/20/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

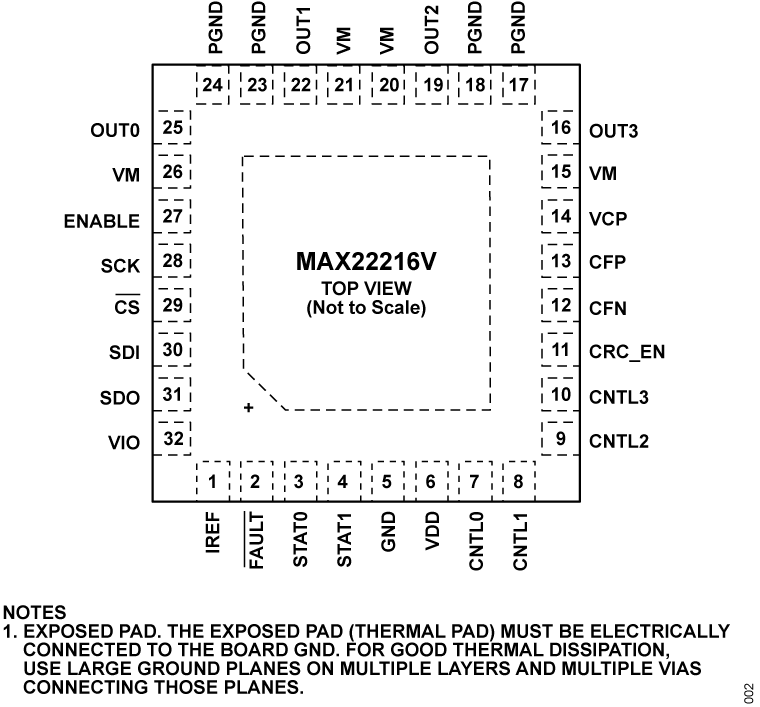

MAX22216VATJ/VY+	32-LFCSP_SS-5X5X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX22216VATJ/VY+T	32-LFCSP_SS-5X5X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
MAX22216	RECOMMENDED FOR NEW DESIGNS	Quad Smart Serial-Controlled Solenoid and Motor Driver with Advanced Diagnostic
MAX22200	RECOMMENDED FOR NEW DESIGNS	36V, 1A Octal Integrated Serial-Controlled Solenoid and Motor Driver
MAX22217	RECOMMENDED FOR NEW DESIGNS	Quad Smart Serial-Controlled Solenoid and Motor Driver with Advanced Diagnostic

Evaluation Kits

Evaluation Board for Quad Smart Serial-Controlled Driver

Buy Now View Details

Features and Benefits

Quad smart serial-controlled 4.5V to 36V half-bridges up to 1.7A/3.2A full scale
SPI and OTP registers
Highly flexible control methods (example, bridge-tied load, and parallel channels)
Two-level current/voltage sequencer
Detection of plunger movement
Power-saving features
Advanced diagnostics
Full set of protections

Product Details

The MAX22216-EVAL-KIT (MAX22216EVKIT) includes the MAX22216-EVAL board alongside the Eselsbruecke and Landungsbruecke boards, to be used together with the TMCL-IDE as part of the Analog Devices Inc. Trinamic TMCL ecosystem.

The MAX22216-EVAL evaluates the MAX22216, MAX22217, and MAX22216V in combination with the TRINAMIC evaluation board system or as a standalone board. It uses the standard schematic and offers several options to test different modes of operation. To evaluate the MAX22217, set SNSF[1:0] = "10" for all channels while in use.

Advanced diagnostic functions are available to improve system reliability and enable predictive maintenance. These include the detection of plunger movement (DPM), travel time measurement, inductance measurement, open load detection (OL), and real-time current monitoring through the serial peripheral interface (SPI).

The MAX22216, MAX22217, and MAX22216V feature a full set of protection circuits, including overcurrent protection (OCP), overtemperature protection (OVT), and undervoltage lockout (UVM). A fault indicator pin is asserted whenever faults are detected.
