MAX2209A
RF Power Detector with Shutdown Control
Industry's Smallest Power Detector Is Now Faster and Power Efficient
Part Details
- -25dBm to -5dBm Power Detection Range
- ±0.5dB Detection Error Due to Temperature
- +2.7V to +5V Single-Supply Operation
- Space-Saving 4-Bump, 1mm² UCSP Package
- Shutdown Control
- 140ns Step-Response Time

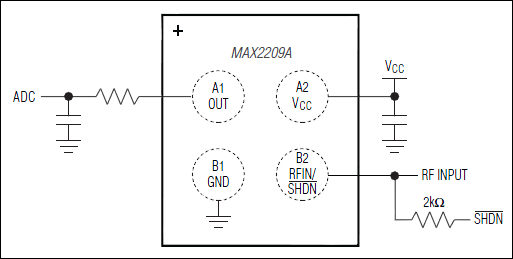

The MAX2209A is a wideband (800MHz to 2GHz) RF power detector. It takes an RF signal from the directional coupler at the input, and outputs a DC voltage proportional to the RF peak voltage. The change in output voltage versus temperature is very repeatable from part to part and enables a lookup table based on nominal behavior, minimizing the effective detection error to less than ±0.5dB relative to room temperature.
The MAX2209A comes in a space-saving 2 x 2, 0.5mm pitch UCSP™.
Applications
- Dual-Band WCDMA Handsets
- High-Speed Downlink Packet Access (HSDPA)
- High-Speed Uplink Packet Access (HSUPA)
