MAX2163

ISDB-T 1-Segment Tuner

Offers -99dBm to 0dBm Dynamic Range at Only 80mW Power Consumption

Viewing:

Overview

Frequency Range
- UHF: 470MHz to 806MHz (UHFIN)
Low Noise Figure: 3.2dB (typ)
High Dynamic Range: -99dBm to 0dBm
Optional UHF Tracking Filter
Integrated VCO and Frequency Synthesizer
Low LO Phase Noise: -87dBc/Hz at 10kHz
Integrated Variable BW Low-IF Filters
Greater Than 40dB Image Rejection
Single +2.4V to +3.47V Supply
Low Power: 80mW (typ) at +2.5V
2-Wire I²C Serial-Control Interface
Low-Power Shutdown and Standby Modes

The MAX2163 low-IF tuner IC is designed for use in 1-segment ISDB-T applications. The MAX2163 directly converts UHF band signals to a low-IF using a broadband I/Q downconverter. The operating frequency range covers the UHF band from 470MHz to 806MHz.

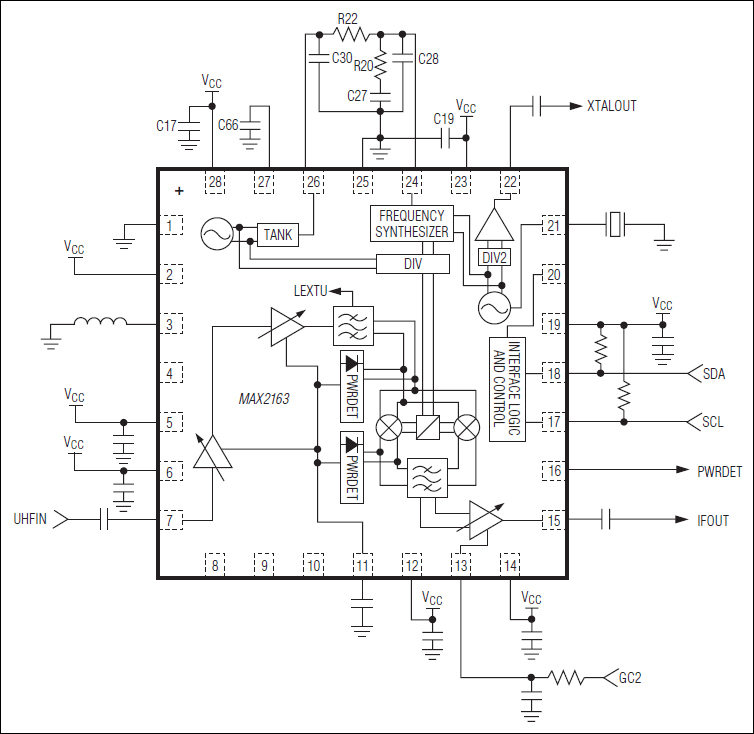

The MAX2163 includes LNAs, RF variable gain amplifiers, I and Q downconverting mixers, a baseband variable gain amplifier, and a low-IF filter. The MAX2163's variable gain amplifiers provide in excess of 100dB of control range.

The MAX2163 also includes fully monolithic VCOs as well as a complete frequency synthesizer including an on-chip crystal oscillator and output buffer. The device operates with a crystal from 32MHz to 36MHz.

The MAX2163 features a 2-wire I²C-compatible serial-control interface. A low-power standby mode is available that shuts down the signal path leaving the control interface and register circuits active. Additionally, an external pin can shut down the entire device.

The MAX2163 is specified for operation in the extended -40°C to +85°C temperature range and is available in a 5mm x 5mm x 0.8mm, 28-pin thin QFN, lead-free plastic package with exposed paddle (EP).

Applications

Automotive
Cell Phone Mobile TV
Game Consoles
Home Audio
Personal Digital Assistants (PDAs)
Portable Audio Devices
Portable TV Devices

Documentation

Data Sheet 1

MAX2163: ISDB-T 1-Segment Tuner Data Sheet (Rev.2) 02/03/2010

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

Evaluation Kit for the MAX2163

Buy Now View Details

Features and Benefits

Easy Evaluation of the MAX2163
50Ω SMA Connectors
All Critical Peripheral Components Included
Fully Assembled and Tested
PC Control Software (Available at www.maximintegrated.com)

Product Details

The MAX2163 evaluation kit (EV kit) simplifies the testing and evaluation of the MAX2163 one-segment ISDB-T tuner. The EV kit is fully assembled and tested at the factory. Standard 50Ω SMA connectors are included on the EV kit for the input and output to allow quick and easy evaluation on the test bench.

This document provides a list of equipment required to evaluate the device, a straightforward test procedure to verify functionality, a description of the EV kit circuit, the circuit schematic, a bill of materials (BOM) for the kit, and artwork for each layer of the PCB.
