MAX20743

Integrated, Step-Down Switching Regulator with PMBus

Show More showmore-icon

Monolithically Integrated, PMBus Enabled Step-Down Switching Regulator with High Power Density and Low Component Count

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.1)
Documentation View All Documentation
SIMPLIS Models MAX20743 SIMPLIS Schematic Download 403.16KB IBIS Model MAX20743 IBIS Models Download 500.5 KB
Part Models 2
1ku List Price Starting From $5.13
Features
  • High-Power Density and Low Component Count
    • Overall Solution Size 509mm2 Including Inductor and Output Capacitors
    • 90.8% Peak Efficiency with VDDH = 12V and VOUT = 1V
    • Fast Transient Response: Supports Up to 300A/µs Load-Step Transients
  • Optimized Component Performance and Efficiency with Reduced Design-In Time
    • PMBus-Compliant Interface for Telemetry and Power Management
    • Voltage, Current and Temperature Reporting through Digital Bus
  • Increased Power-Supply Reliability with System and IC Self-Protection Features
    • Differential Remote Sense with Open-Circuit Detection
    • Hiccup Overcurrent Protection
    • Programmable Thermal Shutdown
Additional Details
show more Icon

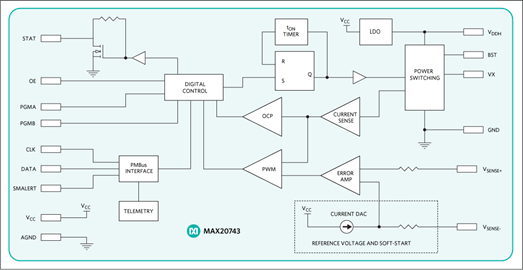

The MAX20743 is a fully integrated, highly efficient switching regulator with PMBus™ for applications operating from 4.5V to 16V and requiring up to 35A maximum load. This single-chip regulator provides extremely compact, high-efficiency power delivery solutions with high-precision output voltages and excellent transient response for networking, datacom and telecom equipment.

The IC offers a broad range of programmable features through either the PMBus or through a capacitor and resistor connected to a dedicated programming pin. Using this feature, the operation can be optimized for a specific application, reducing the component count and/or setting appropriate trade-offs between the regulator’s performance and system cost. Ease of programming enables using the same design for multiple applications.

The IC includes protection and telemetry features. Positive and negative cycle-by-cycle overcurrent protection and overtemperature protection ensure a rugged design. Input undervoltage lockout shuts down the device to prevent operation when the input voltage is out of specification. A status pin provides an output signal to show that the output voltage is within range and the system is regulating.
