MAXPOWERTOOL002
USB-to-PMBus Interface Dongle for Power Products
Top
Overview
Product Details

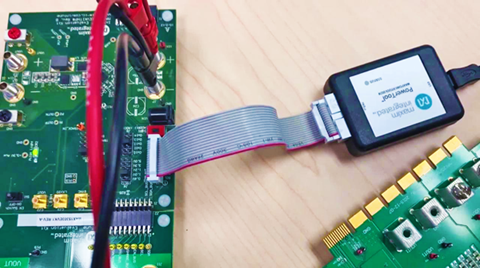

The MAXPOWERTOOL002# is an interface adapter between a host PC (IBM™-compatible) and Analog Devices' PMBus compatible eval boards for power solutions such as hot swaps, 12V multiphase controllers, and 12V point of load devices. The interface to the host PC is a standard type-A to mini-B USB cable. The interface to the eval board is through a 16-pin ribbon cable that carries the PMBus commands.

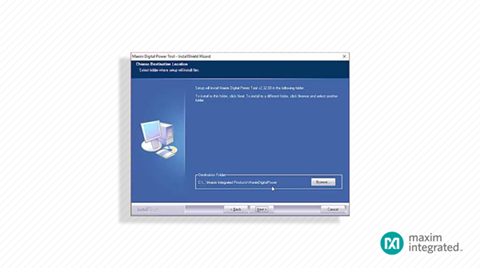

The MAXPOWERTOOL002# is intended to be used with Analog Devices’s Digital PowerTool GUI, and it works with the following devices: MAX20751, MAX20754, MAX20710, MAX20730, MAX20743, MAX20734, MAX20796, MAX20810, MAX20815, MAX16550, MAX16545B/C.
Markets and Technologies
Applicable Parts
Documentation & Resources
-
UG-5981: PowerTool MAXPOWERTOOL002# Quick Start Guide7/10/2023PDF193K
