Features and Benefits

  • Multiple Functions for Small Size
    • Operating Input Voltage Range: 3V to 36V
    • Synchronous DC-DC Converter with Integrated FETs up to 2.5A/3.5A
    • 10μA Quiescent Current in Skip Mode
    • 3MHz/2.1MHz/400kHz Switching Frequency
    • Spread-Spectrum Option
    • Fixed 2.5ms Internal Soft-Start
    • Programmable 0.8V to 12V Output Voltage Range or Fixed 5V/3.3V Options Available
    • 99% Duty Cycle Operation with Low Dropout
  • High Precision for Safety Critical Applications
    • ±1.5% Output Voltage Accuracy in FPWM
    • Precision Enable Thresholds for Fully Programmable UVLO Thresholds
    • Accurate Windowed PGOOD
  • Robust for the Automotive Environment
    • Average Current Mode, Forced-PWM, and Skip Operation
    • Overtemperature, Overvoltage, and Short-Circuit Protection

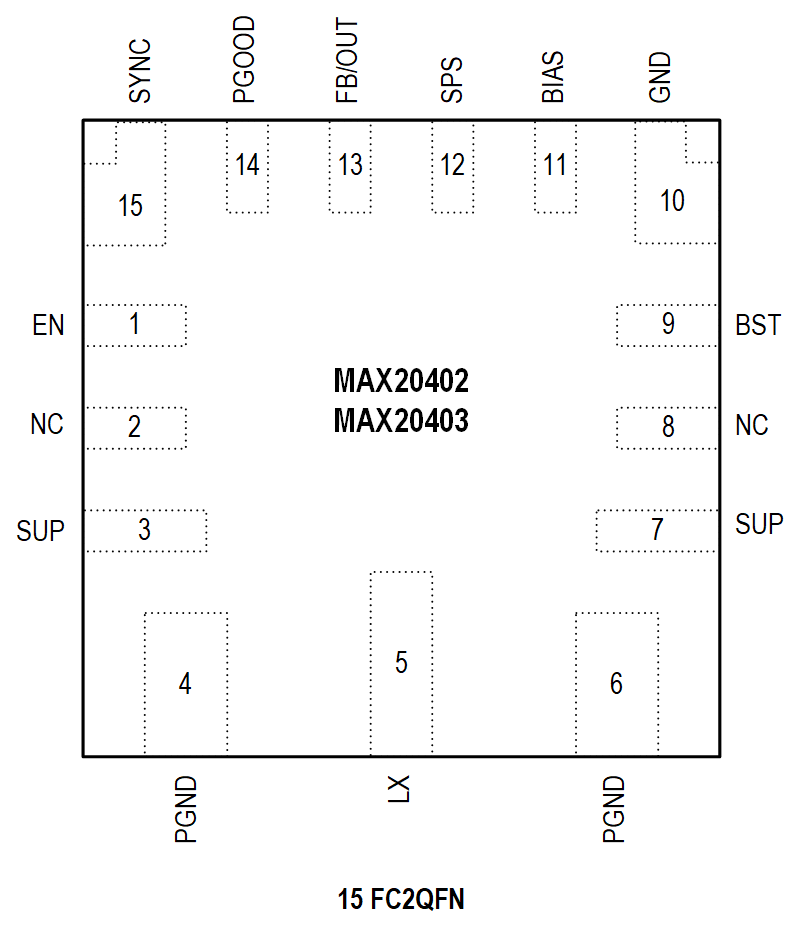

    • 3mm x 3mm FC2QFN
    • -40°C to +125°C Operating Temperature Range
    • 42V Load-Dump Tolerant
    • AEC-Q100 Qualified

Product Details

The MAX20402/MAX20403 IC are tiny synchronous buck converters with integrated high-side and low-side switches. The MAX20402/MAX20403 deliver up to 2.5A/3.5A over a wide 3V to 36V input voltage range. Voltage quality can be monitored by observing the PGOOD signal. These ICs can operate in dropout by running at 99% duty cycle, making them ideal for automotive and industrial applications.

The MAX20402/MAX20403 offer externally programmable or internally fixed output voltages of 5V and 3.3V. Fixed internal frequency options of 3MHz/2.1MHz/400kHz are available, which allow for small external components and reduced output ripple, and also guarantee no AM interference.

When SYNC is low, the MAX20402/MAX20403 automatically enter skip mode at light loads with an ultra-low quiescent current of 10μA at no load. A pin-selectable forced-PWM mode is also available, which helps improve EMI performance. The devices have a spread-spectrum frequency modulation option designed to minimize EMI-radiated emissions due to the modulation frequency.

The MAX20402/MAX20403 are available in a small, 3mm x 3mm FC2QFN package and use very few external components.


  • Automotive Applications
    • ADAS Systems
    • Radar Modules
    • Infotainment
  • Industrial Applications
  • High-Voltage DC-DC Converters
